Components [12/2019 - 10/2022]

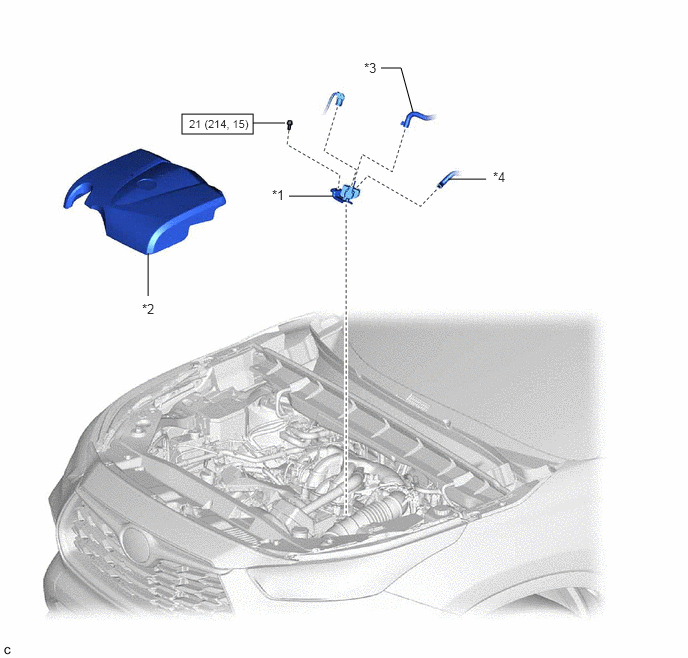

Fig 1: Purge Valve Replacement Components With Torque Specifications [12/2019 - 10/2022]
GTY936104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 PURGE VALVE (PURGE VSV) *2 V-BANK COVER SUB-ASSEMBLY
*3 FUEL VAPOR FEED HOSE *4 NO. 1 FUEL VAPOR FEED HOSE
N.m (kgf/cm, ft.lbf): Specified torque - -
