Inspection [12/2019 - 10/2022]: Procedure

  1. INSPECT FUEL TANK CAP ASSEMBLY
    1. Visually check that the fuel tank cap assembly and gasket are not deformed or damaged.
      GTY444169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Gasket

      If the result is not as specified, replace the fuel tank cap assembly.

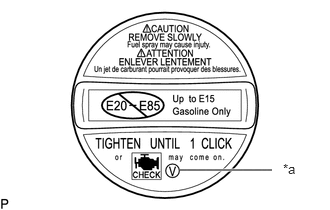

    2. Confirm that ID mark V is printed on the fuel tank cap assembly.
      GTY768200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a ID Mark
      WARNING:

      Make sure to use a fuel tank cap assembly that has the same ID mark, or a malfunction may occur in the fuel system.
