Components [12/2019 - 10/2022]

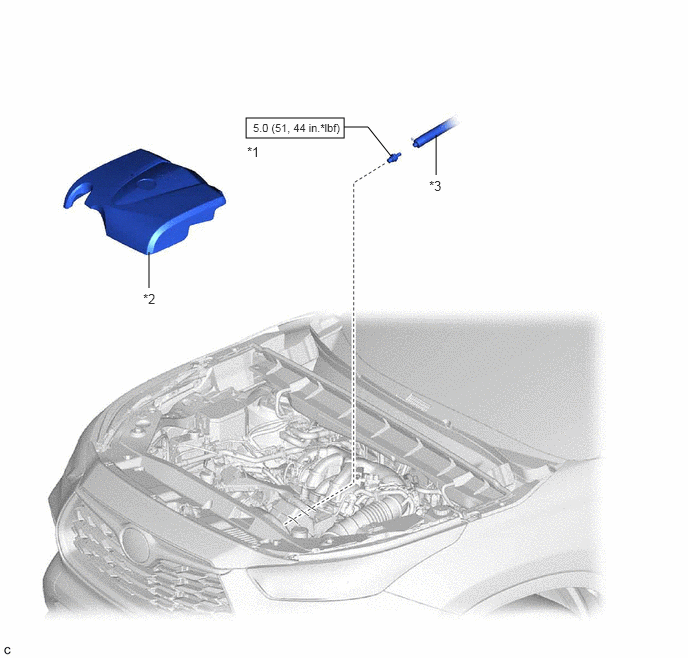

Fig 1: PCV Valve Replacement Components With Torque Specifications [12/2019 - 10/2022]
GTY896015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY) *2 V-BANK COVER SUB-ASSEMBLY
*3 VENTILATION HOSE - -
N.m (kgf/cm, ft.lbf): Specified torque - -
