Removal [12/2019 - 10/2022]: Procedure

  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 23 [12/2019 - 09/2020] , or refer to PROCEDURE - Step 23 [09/2020 - 10/2022]

  2. DISCONNECT VENTILATION HOSE
    1. Slide the clip and disconnect the ventilation hose from the PCV valve (ventilation valve sub-assembly).

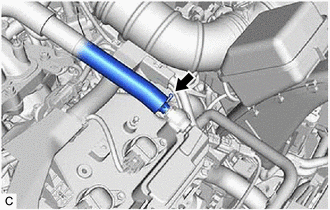

      GTY886016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)
    1. Using a 22 mm deep socket wrench, remove the PCV valve (ventilation valve sub-assembly) from the cylinder head cover sub-assembly LH.

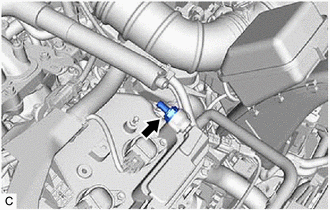

      GTY936697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
