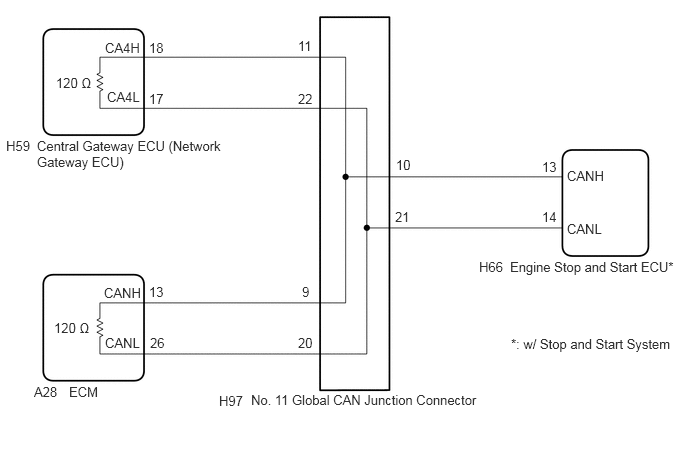

Check Bus 2 Line [12/2019 - 10/2022]: Wiring Diagram

GTY851855

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
