DSD Information System

Home >> Toyota >> 2021 >> Highlander LE, 4WD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Communication Devices >> Can Communication System (Except HV) - Circuit Tests (4 Of 8) >> CAN COMMUNICATION SYSTEM (for Gasoline Model) >> Check Bus 2 Line [10/2022 - 11/2023] >> Wiring Diagram

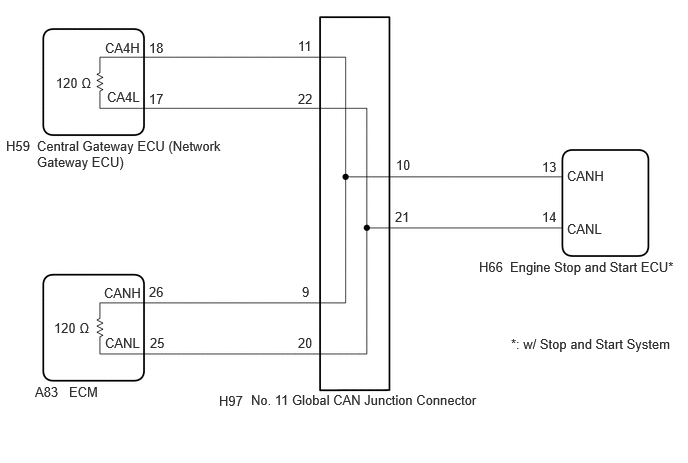

Check Bus 2 Line [10/2022 - 11/2023]: Wiring Diagram

GTY1114424

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
