DSD Information System
Home
>>
Toyota
>>
2021
>>
Highlander LE, 4WD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Testing & Diagnosis
>>
Engine Control System (2GR-FKS) - Diagnostic Codes (5 Of 6)
>>
SFI System
>>
DTC P0615-12: Starter Relay Circuit Short to Battery [12/2019 - 10/2022]
>>

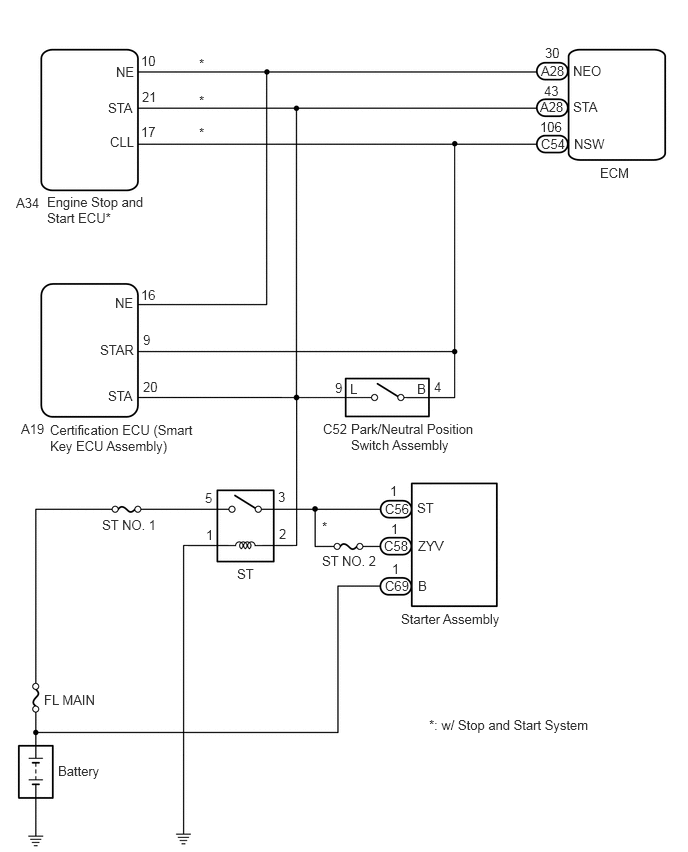

Wiring Diagram
DTC P0615-12: Starter Relay Circuit Short to Battery [12/2019 - 10/2022]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
