Check Bus 3 Line [10/2022 - 11/2023]: Procedure

1. Disconnect the cable from the negative (-) battery terminal.
2. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Component with harness connected (Central Gateway ECU (Network Gateway ECU))

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H59-6 (CA3H) - H59-21 (CA3L)	Cable disconnected from negative (-) battery terminal	Below 70 Ω

   Result

   Result
   OK
   NG

Result:

NG

See step  32

Result:

OK

See step  2

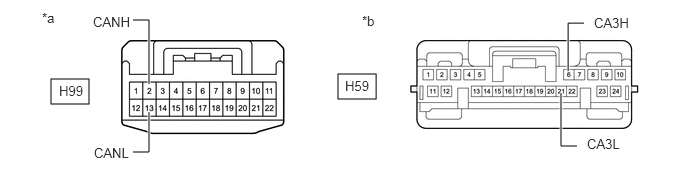

1. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Component with harness connected (Central Gateway ECU (Network Gateway ECU))

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H59-6 (CA3H) - H59-21 (CA3L)	Cable disconnected from negative (-) battery terminal	54 Ω or higher

   Result

   Result
   OK
   NG

Result:

NG

See step  23

Result:

OK

See step  3

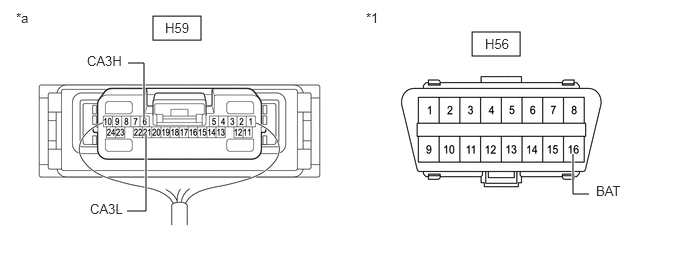

1. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

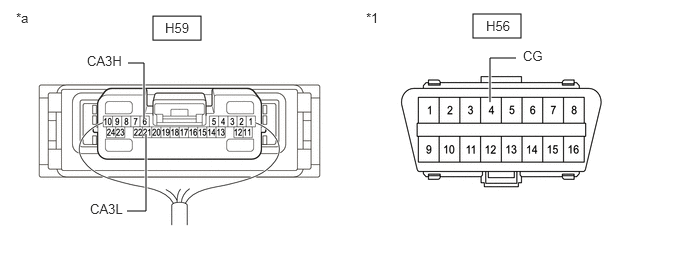

   *1	DLC3	-	-
   *a	Component with harness connected (Central Gateway ECU (Network Gateway ECU))	-	-

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H59-6 (CA3H) - H56-16 (BAT)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
   H59-21 (CA3L) - H56-16 (BAT)

   Result

   Result
   OK
   NG

Result:

NG

See step  14

Result:

OK

See step  4

1. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	DLC3	-	-
   *a	Component with harness connected (Central Gateway ECU (Network Gateway ECU))	-	-

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H59-6 (CA3H) - H56-4 (CG)	Cable disconnected from negative (-) battery terminal	200 Ω or higher
   H59-21 (CA3L) - H56-4 (CG)

   Result

   Result
   OK
   NG

Result:

OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

Refer to REMOVAL [12/2019 - 11/2023]

Result:

NG

See step  5

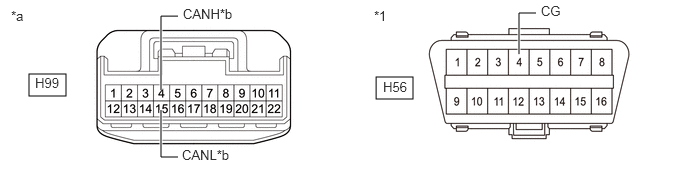

1. Disconnect the H99 No. 7 global CAN junction connector.
2. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

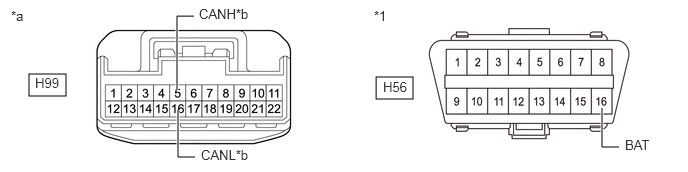

   *1	DLC3	-	-
   *a	Front view of wire harness connector (to No. 7 Global CAN Junction Connector)	*b	to Central Gateway ECU (Network Gateway ECU)

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H99-2 (CANH) - H56-4 (CG)	Cable disconnected from negative (-) battery terminal	200 Ω or higher
   H99-13 (CANL) - H56-4 (CG)

   Result

   Result
   OK
   NG

Result:

NG

See step  10

Result:

OK

See step  6

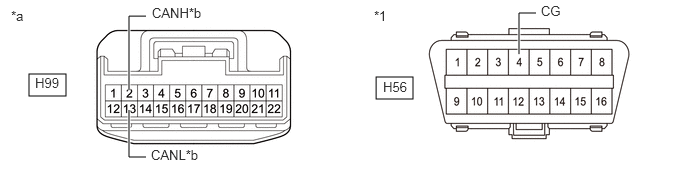

1. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	DLC3	-	-
   *a	Front view of wire harness connector (to No. 7 Global CAN Junction Connector)	*b	to Central Gateway ECU (Network Gateway ECU)

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H99-3 (CANH) - H56-4 (CG)	Cable disconnected from negative (-) battery terminal	200 Ω or higher
   H99-14 (CANL) - H56-4 (CG)

   Result

   Result
   OK
   NG

Result:

NG

See step  11

Result:

OK

See step  7

1. Check vehicle type.

   Result

   Result	Proceed to
   w/ Telematics Transceiver	A
   w/o Telematics Transceiver	B

Result:

B

See step  9

Result:

A

See step  8

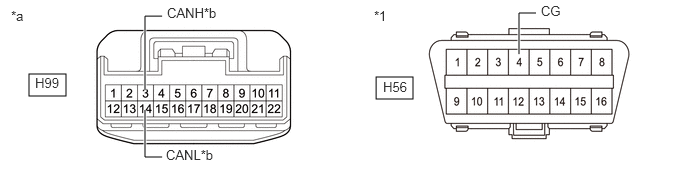

1. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	DLC3	-	-
   *a	Front view of wire harness connector (to No. 7 Global CAN Junction Connector)	*b	to DCM (Telematics Transceiver)

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H99-5 (CANH) - H56-4 (CG)	Cable disconnected from negative (-) battery terminal	200 Ω or higher
   H99-16 (CANL) - H56-4 (CG)

   Result

   Result
   OK
   NG

Result:

NG

See step  12

Result:

OK

See step  9

1. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	DLC3	-	-
   *a	Front view of wire harness connector (to No. 7 Global CAN Junction Connector)	*b	to Radio and Display Receiver Assembly

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H99-4 (CANH) - H56-4 (CG)	Cable disconnected from negative (-) battery terminal	200 Ω or higher
   H99-15 (CANL) - H56-4 (CG)

   Result

   Result
   OK
   NG

Result:

OK

REPLACE NO. 7 GLOBAL CAN JUNCTION CONNECTOR

Result:

NG

See step  13

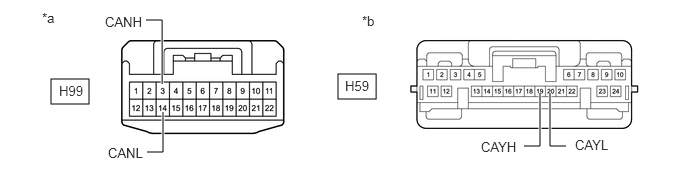

1. Disconnect the H59 central gateway ECU (network gateway ECU) connector.
2. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	DLC3	-	-
   *a	Front view of wire harness connector (to No. 7 Global CAN Junction Connector)	*b	to Central Gateway ECU (Network Gateway ECU)

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H99-2 (CANH) - H56-4 (CG)	Cable disconnected from negative (-) battery terminal	200 Ω or higher
   H99-13 (CANL) - H56-4 (CG)

   Result

   Result
   OK
   NG

Result:

OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

Refer to REMOVAL [12/2019 - 11/2023]

Result:

NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

1. Disconnect the H59 central gateway ECU (network gateway ECU) connector.
2. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	DLC3	-	-
   *a	Front view of wire harness connector (to No. 7 Global CAN Junction Connector)	*b	to Central Gateway ECU (Network Gateway ECU)

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H99-3 (CANH) - H56-4 (CG)	Cable disconnected from negative (-) battery terminal	200 Ω or higher
   H99-14 (CANL) - H56-4 (CG)

   Result

   Result
   OK
   NG

Result:

OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

Refer to REMOVAL [12/2019 - 11/2023]

Result:

NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

1. Disconnect the H11 DCM (telematics transceiver) connector.
2. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	DLC3	-	-
   *a	Front view of wire harness connector (to No. 7 Global CAN Junction Connector)	*b	to DCM (Telematics Transceiver)

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H99-5 (CANH) - H56-4 (CG)	Cable disconnected from negative (-) battery terminal	200 Ω or higher
   H99-16 (CANL) - H56-4 (CG)

   Result

   Result
   OK
   NG

Result:

OK

REPLACE DCM (TELEMATICS TRANSCEIVER)

Refer to REMOVAL [10/2022 - 11/2023]

Result:

NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER))

1. Disconnect the H108 radio and display receiver assembly connector.
2. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	DLC3	-	-
   *a	Front view of wire harness connector (to No. 7 Global CAN Junction Connector)	*b	to Radio and Display Receiver Assembly

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H99-4 (CANH) - H56-4 (CG)	Cable disconnected from negative (-) battery terminal	200 Ω or higher
   H99-15 (CANL) - H56-4 (CG)

   Result

   Result
   OK
   NG

Result:

OK

REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY

Refer to REMOVAL [10/2022 - 11/2023]

Result:

NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY)

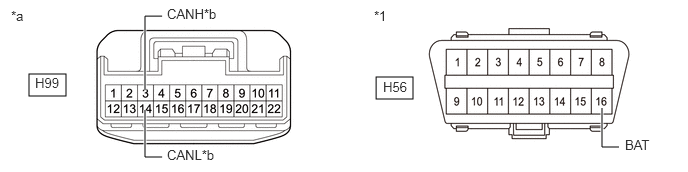

1. Disconnect the H99 No. 7 global CAN junction connector.
2. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	DLC3	-	-
   *a	Front view of wire harness connector (to No. 7 Global CAN Junction Connector)	*b	to Central Gateway ECU (Network Gateway ECU)

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H99-2 (CANH) - H56-16 (BAT)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
   H99-13 (CANL) - H56-16 (BAT)

   Result

   Result
   OK
   NG

Result:

NG

See step  19

Result:

OK

See step  15

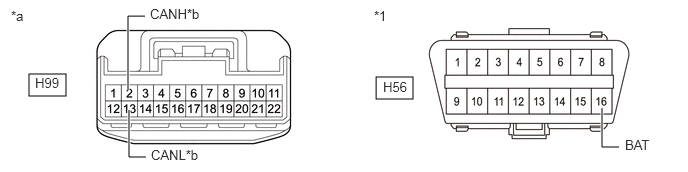

1. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	DLC3	-	-
   *a	Front view of wire harness connector (to No. 7 Global CAN Junction Connector)	*b	to Central Gateway ECU (Network Gateway ECU)

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H99-3 (CANH) - H56-16 (BAT)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
   H99-14 (CANL) - H56-16 (BAT)

   Result

   Result
   OK
   NG

Result:

NG

See step  20

Result:

OK

See step  16

1. Check vehicle type.

   Result

   Result	Proceed to
   w/ Telematics Transceiver	A
   w/o Telematics Transceiver	B

Result:

B

See step  18

Result:

A

See step  17

1. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	DLC3	-	-
   *a	Front view of wire harness connector (to No. 7 Global CAN Junction Connector)	*b	to DCM (Telematics Transceiver)

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H99-5 (CANH) - H56-16 (BAT)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
   H99-16 (CANL) - H56-16 (BAT)

   Result

   Result
   OK
   NG

Result:

NG

See step  21

Result:

OK

See step  18

1. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	DLC3	-	-
   *a	Front view of wire harness connector (to No. 7 Global CAN Junction Connector)	*b	to Radio and Display Receiver Assembly

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H99-4 (CANH) - H56-16 (BAT)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
   H99-15 (CANL) - H56-16 (BAT)

   Result

   Result
   OK
   NG

Result:

OK

REPLACE NO. 7 GLOBAL CAN JUNCTION CONNECTOR

Result:

NG

See step  22

1. Disconnect the H59 central gateway ECU (network gateway ECU) connector.
2. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	DLC3	-	-
   *a	Front view of wire harness connector (to No. 7 Global CAN Junction Connector)	*b	to Central Gateway ECU (Network Gateway ECU)

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H99-2 (CANH) - H56-16 (BAT)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
   H99-13 (CANL) - H56-16 (BAT)

   Result

   Result
   OK
   NG

Result:

OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

Refer to REMOVAL [12/2019 - 11/2023]

Result:

NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

1. Disconnect the H59 central gateway ECU (network gateway ECU) connector.
2. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	DLC3	-	-
   *a	Front view of wire harness connector (to No. 7 Global CAN Junction Connector)	*b	to Central Gateway ECU (Network Gateway ECU)

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H99-3 (CANH) - H56-16 (BAT)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
   H99-14 (CANL) - H56-16 (BAT)

   Result

   Result
   OK
   NG

Result:

OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

Refer to REMOVAL [12/2019 - 11/2023]

Result:

NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

1. Disconnect the H11 DCM (telematics transceiver) connector.
2. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	DLC3	-	-
   *a	Front view of wire harness connector (to No. 7 Global CAN Junction Connector)	*b	to DCM (Telematics Transceiver)

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H99-5 (CANH) - H56-16 (BAT)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
   H99-16 (CANL) - H56-16 (BAT)

   Result

   Result
   OK
   NG

Result:

OK

REPLACE DCM (TELEMATICS TRANSCEIVER)

Refer to REMOVAL [10/2022 - 11/2023]

Result:

NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER))

1. Disconnect the H108 radio and display receiver assembly connector.
2. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	DLC3	-	-
   *a	Front view of wire harness connector (to No. 7 Global CAN Junction Connector)	*b	to Radio and Display Receiver Assembly

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H99-4 (CANH) - H56-16 (BAT)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
   H99-15 (CANL) - H56-16 (BAT)

   Result

   Result
   OK
   NG

Result:

OK

REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY

Refer to REMOVAL [10/2022 - 11/2023]

Result:

NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY)

1. Disconnect the H99 No. 7 global CAN junction connector.
2. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Front view of wire harness connector (to No. 7 Global CAN Junction Connector)

   *b

   to Central Gateway ECU (Network Gateway ECU)

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H99-2 (CANH) - H99-13 (CANL)	Cable disconnected from negative (-) battery terminal	108 to 132 Ω

   Result

   Result
   OK
   NG

Result:

NG

See step  28

Result:

OK

See step  24

1. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Front view of wire harness connector (to No. 7 Global CAN Junction Connector)

   *b

   to Central Gateway ECU (Network Gateway ECU)

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H99-3 (CANH) - H99-14 (CANL)	Cable disconnected from negative (-) battery terminal	108 to 132 Ω

   Result

   Result
   OK
   NG

Result:

NG

See step  29

Result:

OK

See step  25

1. Check vehicle type.

   Result

   Result	Proceed to
   w/ Telematics Transceiver	A
   w/o Telematics Transceiver	B

Result:

B

See step  27

Result:

A

See step  26

1. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Front view of wire harness connector (to No. 7 Global CAN Junction Connector)

   *b

   to DCM (Telematics Transceiver)

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H99-5 (CANH) - H99-16 (CANL)	Cable disconnected from negative (-) battery terminal	200 Ω or higher

   Result

   Result
   OK
   NG

Result:

NG

See step  30

Result:

OK

See step  27

1. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Front view of wire harness connector (to No. 7 Global CAN Junction Connector)

   *b

   to Radio and Display Receiver Assembly

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H99-4 (CANH) - H99-15 (CANL)	Cable disconnected from negative (-) battery terminal	200 Ω or higher

   Result

   Result
   OK
   NG

Result:

OK

REPLACE NO. 7 GLOBAL CAN JUNCTION CONNECTOR

Result:

NG

See step  31

1. Disconnect the H59 central gateway ECU (network gateway ECU) connector.
2. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Front view of wire harness connector (to No. 7 Global CAN Junction Connector)

   *b

   to Central Gateway ECU (Network Gateway ECU)

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H99-2 (CANH) - H99-13 (CANL)	Cable disconnected from negative (-) battery terminal	1 MΩ or higher

   Result

   Result
   OK
   NG

Result:

OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

Refer to REMOVAL [12/2019 - 11/2023]

Result:

NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

1. Disconnect the H59 central gateway ECU (network gateway ECU) connector.
2. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Front view of wire harness connector (to No. 7 Global CAN Junction Connector)

   *b

   to Central Gateway ECU (Network Gateway ECU)

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H99-3 (CANH) - H99-14 (CANL)	Cable disconnected from negative (-) battery terminal	1 MΩ or higher

   Result

   Result
   OK
   NG

Result:

OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

Refer to REMOVAL [12/2019 - 11/2023]

Result:

NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

1. Disconnect the H11 DCM (telematics transceiver) connector.
2. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Front view of wire harness connector (to No. 7 Global CAN Junction Connector)

   *b

   to DCM (Telematics Transceiver)

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H99-5 (CANH) - H99-16 (CANL)	Cable disconnected from negative (-) battery terminal	1 MΩ or higher

   Result

   Result
   OK
   NG

Result:

OK

REPLACE DCM (TELEMATICS TRANSCEIVER)

Refer to REMOVAL [10/2022 - 11/2023]

Result:

NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER))

1. Disconnect the H108 radio and display receiver assembly connector.
2. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Front view of wire harness connector (to No. 7 Global CAN Junction Connector)

   *b

   to Radio and Display Receiver Assembly

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H99-4 (CANH) - H99-15 (CANL)	Cable disconnected from negative (-) battery terminal	1 MΩ or higher

   Result

   Result
   OK
   NG

Result:

OK

REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY

Refer to REMOVAL [10/2022 - 11/2023]

Result:

NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY)

1. Disconnect the H99 No. 7 global CAN junction connector.
2. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Front view of wire harness connector (to No. 7 Global CAN Junction Connector)

   *b

   to Central Gateway ECU (Network Gateway ECU)

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H99-2 (CANH) - H99-13 (CANL)	Cable disconnected from negative (-) battery terminal	108 to 132 Ω

   Result

   Result
   OK
   NG

Result:

NG

See step  35

Result:

OK

See step  33

1. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Front view of wire harness connector (to No. 7 Global CAN Junction Connector)

   *b

   to Central Gateway ECU (Network Gateway ECU)

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H99-3 (CANH) - H99-14 (CANL)	Cable disconnected from negative (-) battery terminal	108 to 132 Ω

   Result

   Result
   OK
   NG

Result:

OK

REPLACE NO. 7 GLOBAL CAN JUNCTION CONNECTOR

Result:

NG

See step  34

1. Disconnect the H59 central gateway ECU (network gateway ECU) connector.
2. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Front view of wire harness connector (to No. 7 Global CAN Junction Connector)

   *b

   Front view of wire harness connector (to Central Gateway ECU (Network Gateway ECU))

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H99-3 (CANH) - H59-19 (CAYH)	Cable disconnected from negative (-) battery terminal	Below 1 Ω
   H99-14 (CANL) - H59-20 (CAYL)

   Result

   Result
   OK
   NG

Result:

OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

Refer to REMOVAL [12/2019 - 11/2023]

Result:

NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) - NO. 7 GLOBAL CAN JUNCTION CONNECTOR)

1. Disconnect the H59 central gateway ECU (network gateway ECU) connector.
2. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Front view of wire harness connector (to No. 7 Global CAN Junction Connector)

   *b

   Front view of wire harness connector (to Central Gateway ECU (Network Gateway ECU))

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H99-2 (CANH) - H59-6 (CA3H)	Cable disconnected from negative (-) battery terminal	Below 1 Ω
   H99-13 (CANL) - H59-21 (CA3L)

   Result

   Result
   OK
   NG

Result:

OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

Refer to REMOVAL [12/2019 - 11/2023]

Result:

NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) - NO. 7 GLOBAL CAN JUNCTION CONNECTOR)
