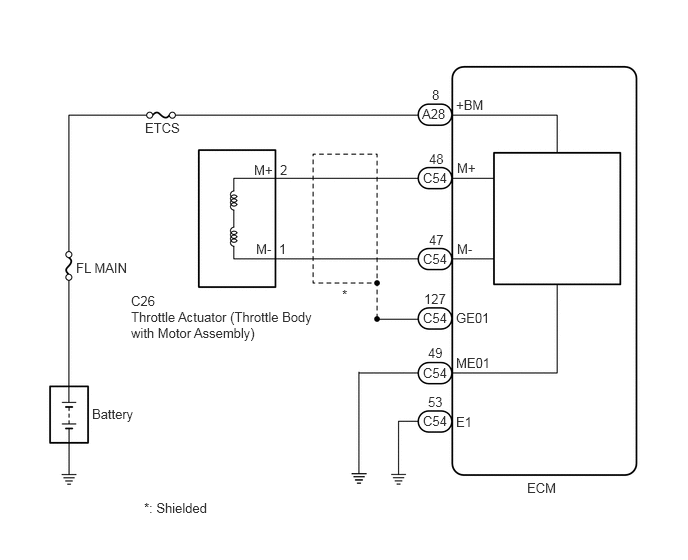

DTC P2100-18: Throttle Actuator "A" Control Motor Circuit Current Below Threshold; DTC P2100-19: Throttle Actuator "A" Control Motor Circuit Current Above Threshold [12/2019 - 10/2022]: Wiring Diagram

GTY921794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
