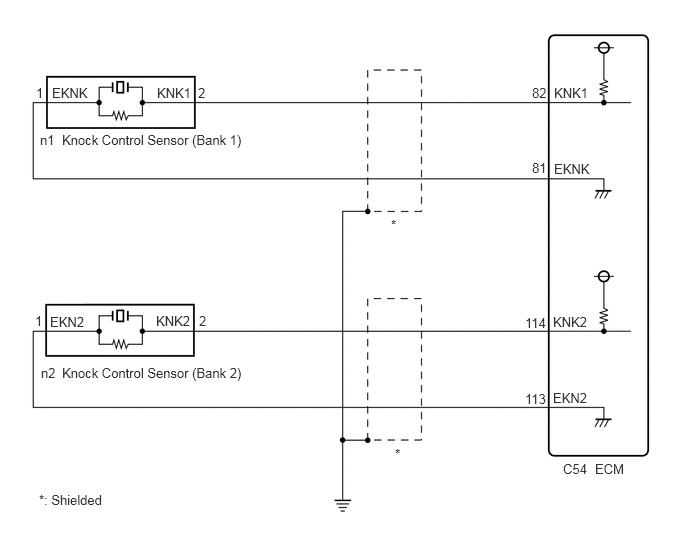

DTC P0325-11: Knock Sensor 1 Bank 1 or Single Sensor Circuit Short to Ground; DTC P0330-11: Knock Sensor 2 Bank 2 Circuit Short to Ground [12/2019 - 10/2022]: Wiring Diagram

GTY874048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
