Home >> Toyota >> 2021 >> Highlander LE, 4WD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Communication Devices >> Can Communication System (Except HV) - Circuit Tests (6 Of 8) >> CAN COMMUNICATION SYSTEM (for Gasoline Model) >> Check Bus 4 Line [11/2023 - ] >> Wiring Diagram

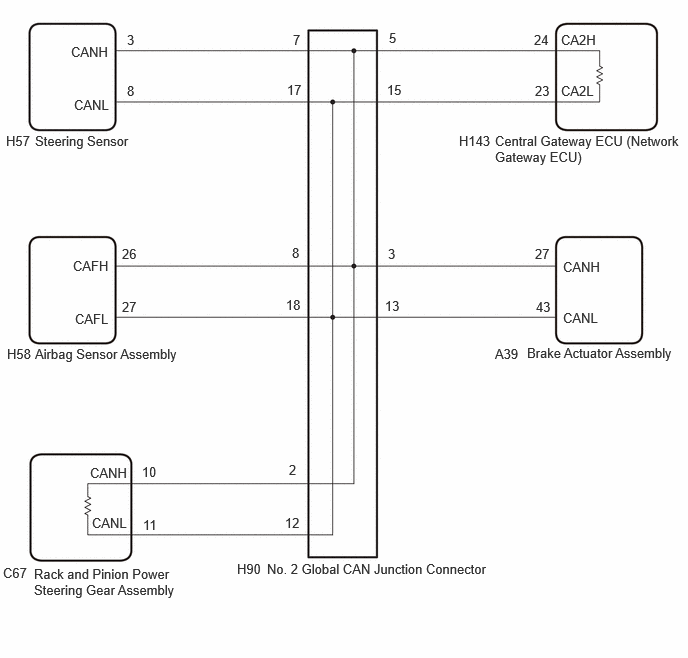

Check Bus 4 Line [11/2023 - ]: Wiring Diagram

GTY1179523

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
