CAN COMMUNICATION SYSTEM (for Gasoline Model)
>>
Check Bus 5 Line [10/2022 - 11/2023]
>>
Wiring Diagram

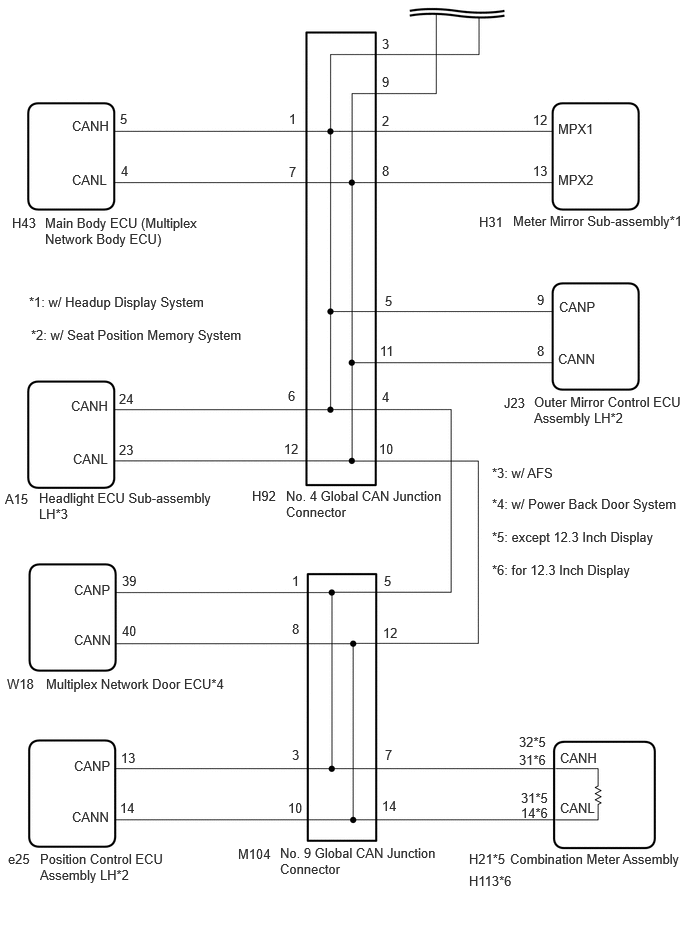

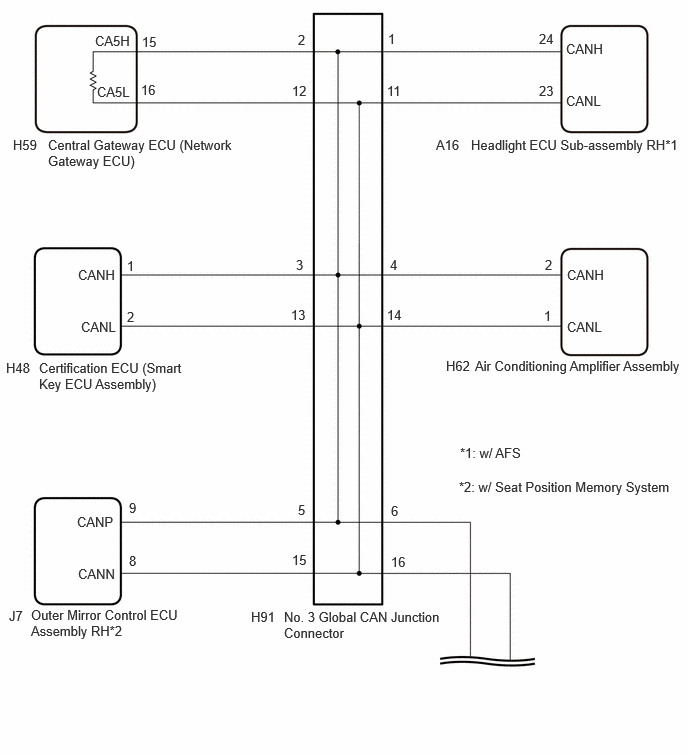

Check Bus 5 Line [10/2022 - 11/2023]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
