DTC P0201-13: Cylinder 1 Injector "A" Circuit Open; DTC P0202-13: Cylinder 2 Injector "A" Circuit Open; DTC P0203-13: Cylinder 3 Injector "A" Circuit Open; DTC P0204-13: Cylinder 4 Injector "A" Circuit Open; DTC P0205-13: Cylinder 5 Injector "A" Circuit Open; DTC P0206-13: Cylinder 6 Injector "A" Circuit Open; DTC P062D-13: Fuel Injector Driver Circuit Performance Bank 1 Circuit Open [12/2019 - 10/2022]: Wiring Diagram

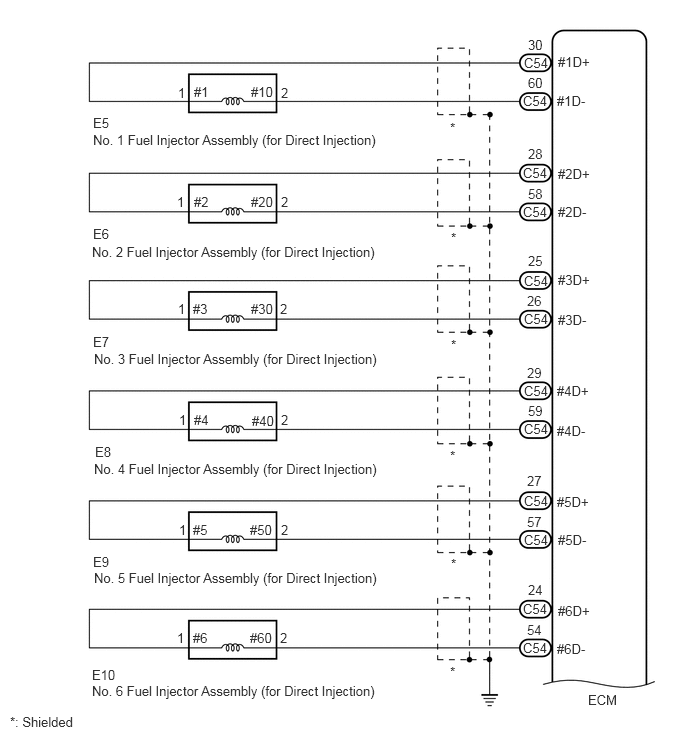

GTY899790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

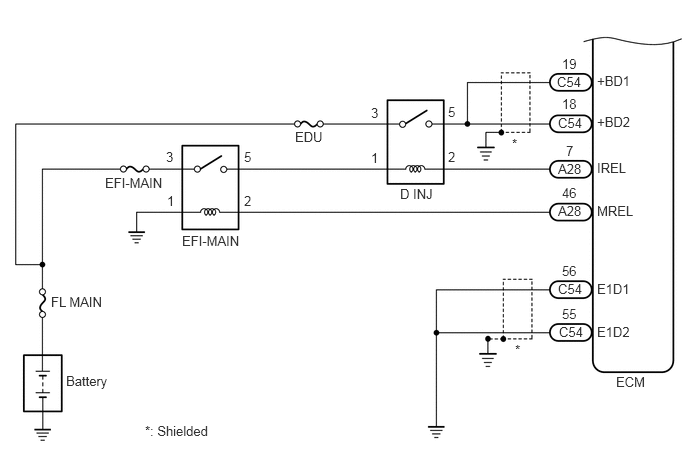

GTY934257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
