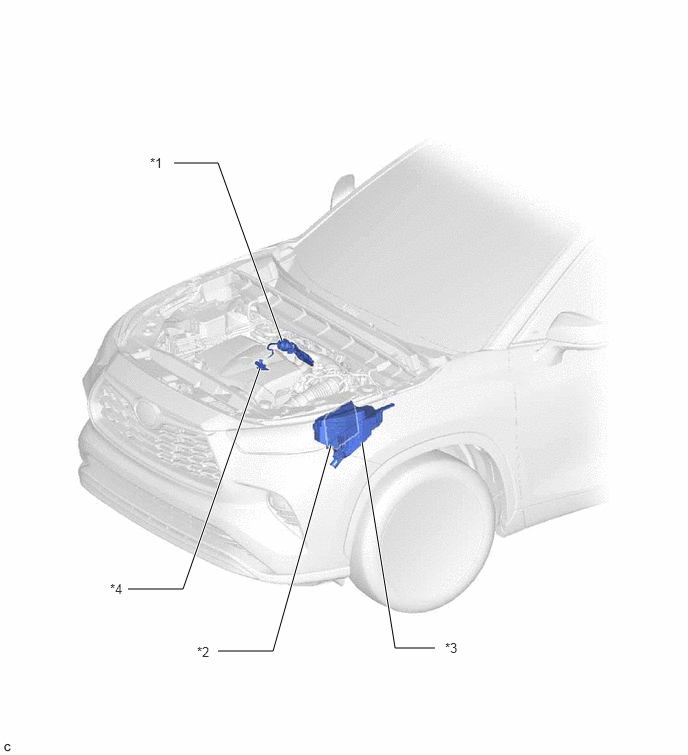

Parts Location [12/2019 - 10/2022]: Illustration

GTY844153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 INTAKE AIR CONTROL VALVE (for ACIS) *2 ECM
*3 ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY
- EFI NO. 4 FUSE		 *4 NO. 1 VACUUM SWITCHING VALVE ASSEMBLY (for ACIS)
