Components [12/2019 - 10/2022]

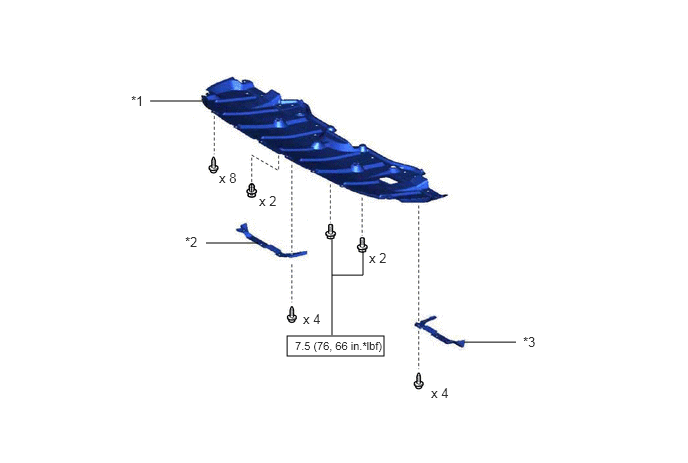

Fig 1: Exhaust Manifold Replacement Components With Torque Specifications [12/2019 - 10/2022] (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 1 ENGINE UNDER COVER | *2 | FRONT WHEEL OPENING EXTENSION PAD RH |
| *3 | FRONT WHEEL OPENING EXTENSION PAD LH | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |

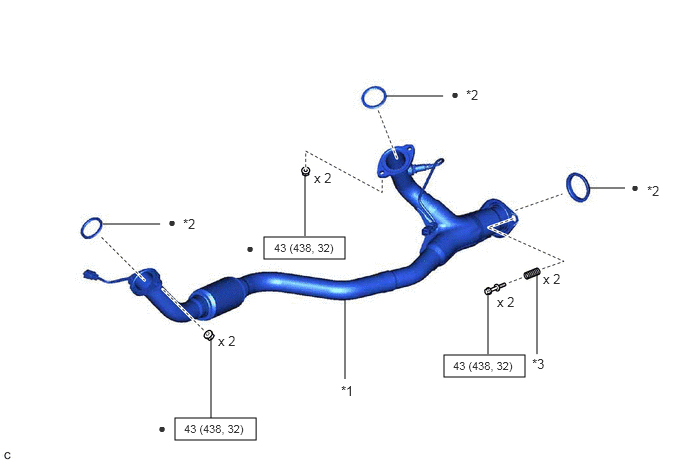

Fig 2: Exhaust Manifold Replacement Components With Torque Specifications [12/2019 - 10/2022] (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT EXHAUST PIPE ASSEMBLY | *2 | GASKET |
| *3 | COMPRESSION SPRING | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |

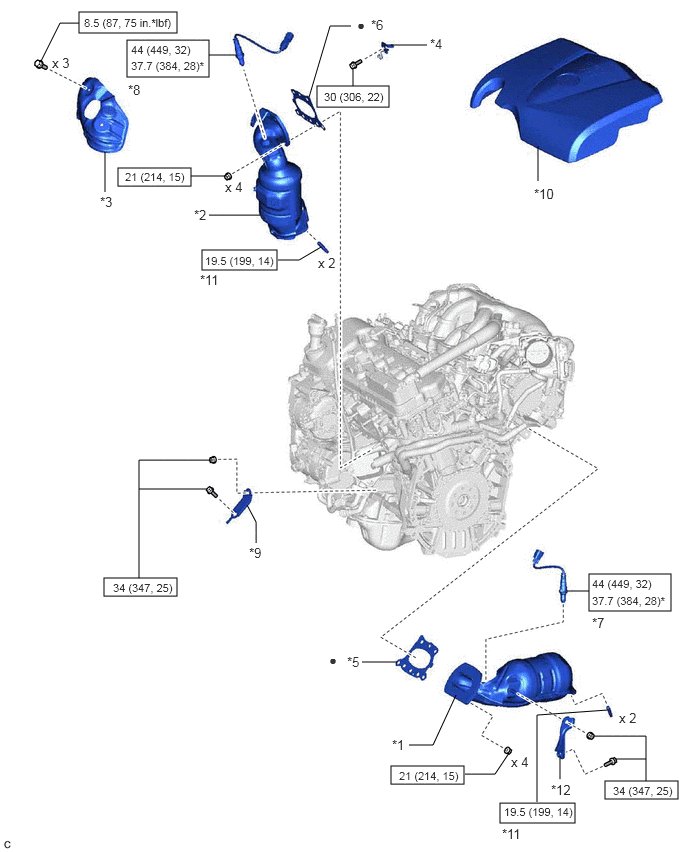

Fig 3: Exhaust Manifold Replacement Components With Torque Specifications [12/2019 - 10/2022] (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | EXHAUST MANIFOLD ASSEMBLY RH (TWC: Front Catalyst) | *2 | EXHAUST MANIFOLD ASSEMBLY LH (TWC: Front Catalyst) |
| *3 | NO. 2 EXHAUST MANIFOLD HEAT INSULATOR | *4 | NO. 1 SENSOR BRACKET |
| *5 | EXHAUST MANIFOLD TO HEAD GASKET (for Bank 1) | *6 | EXHAUST MANIFOLD TO HEAD GASKET (for Bank 2) |
| *7 | AIR FUEL RATIO SENSOR (for Bank 1) | *8 | AIR FUEL RATIO SENSOR (for Bank 2) |
| *9 | NO. 2 MANIFOLD STAY | *10 | V-BANK COVER SUB-ASSEMBLY |
| *11 | STUD BOLT | *12 | MANIFOLD STAY |
|
N.m (kgf/cm, ft.lbf): Specified torque | * | For use with SST |
| • | Non-reusable part | - | - |
