Components [09/2020 - 10/2022]

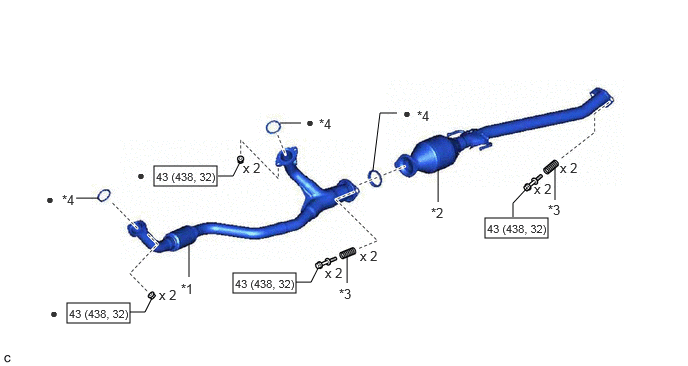

Fig 1: Exhaust Pipe Replacement Components With Torque Specifications [09/2020 - 10/2022] (1 Of 2)
GTY1001713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT EXHAUST PIPE ASSEMBLY *2 CENTER EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)
*3 COMPRESSION SPRING *4 GASKET
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part

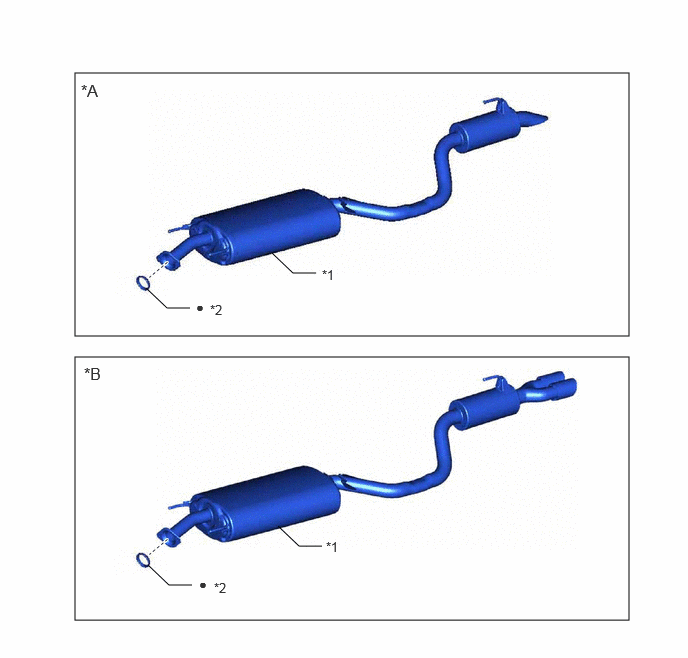

Fig 2: Exhaust Pipe Replacement Components [09/2020 - 10/2022] (2 Of 2)
GTY1002239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A Type A *B Type B
*1 TAIL EXHAUST PIPE ASSEMBLY *2 GASKET
• Non-reusable part - -
