Components [12/2019 - 09/2020]

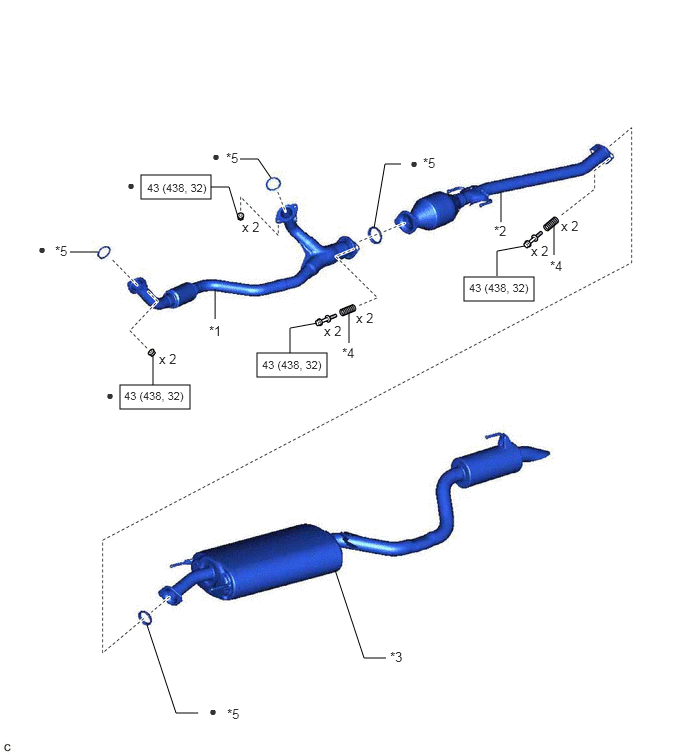

Fig 1: Exhaust Pipe Replacement Components With Torque Specifications [12/2019 - 09/2020]
GTY941724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT EXHAUST PIPE ASSEMBLY *2 CENTER EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)
*3 TAIL EXHAUST PIPE ASSEMBLY *4 COMPRESSION SPRING
*5 GASKET - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
