Removal [11/2023 - ]: Procedure

  1. PRECAUTION
    NOTE:
    • After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.

      Refer to BEFORE DISCONNECTING BATTERY [11/2023 - ]

    • When replacing the battery, use a new battery of the same dimensions and same capacity or more from the same class at a 20-hour rate.

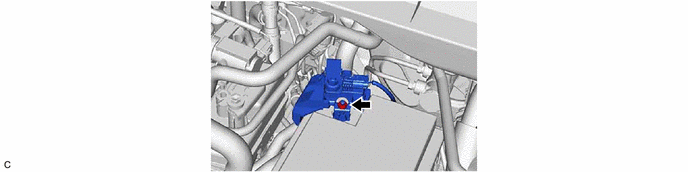

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    1. GTY1108024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

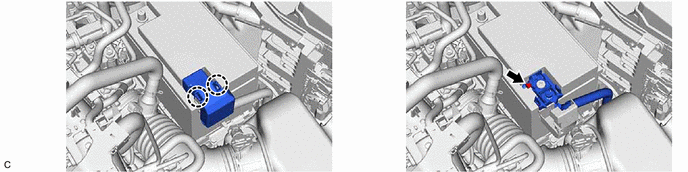

  3. DISCONNECT CABLE FROM POSITIVE BATTERY TERMINAL
    1. GTY1108023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 2 BATTERY CLAMP
    1. GTY1108025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

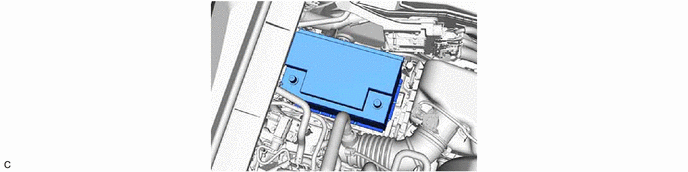

  5. REMOVE BATTERY
    1. GTY1109361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
