Removal [12/2019 - 10/2022]: Procedure

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    1. Loosen the nut, and disconnect the cable from the negative (-) battery terminal.
      NOTE:

      When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

      Refer to INITIALIZATION [12/2019 - 09/2020] , or refer to INITIALIZATION [09/2020 - 10/2021] , or refer to INITIALIZATION [10/2021 - 10/2022]

      GTY861132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Stop and Start System
      *B w/o Stop and Start System
  2. REMOVE BATTERY

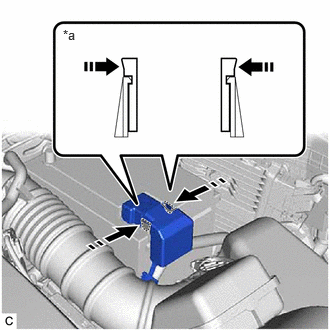

    1. Disengage the 2 claws and remove the battery terminal cap from the positive (+) battery terminal in the order shown in the illustration.
      GTY934278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Side View of Claws
      Push Battery Terminal Cap Here
      Push

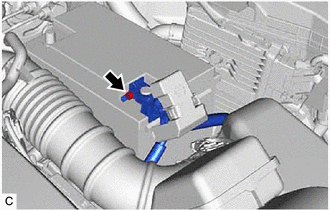

    2. Loosen the nut and disconnect the cable from the positive (+) battery terminal.
      GTY888314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

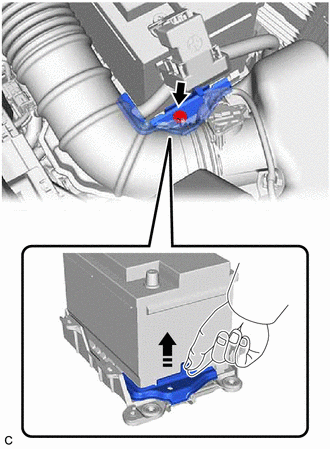

    3. Remove the bolt and No. 2 battery clamp from the battery clamp sub-assembly.
      GTY884621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    4. Remove the battery from the vehicle.
