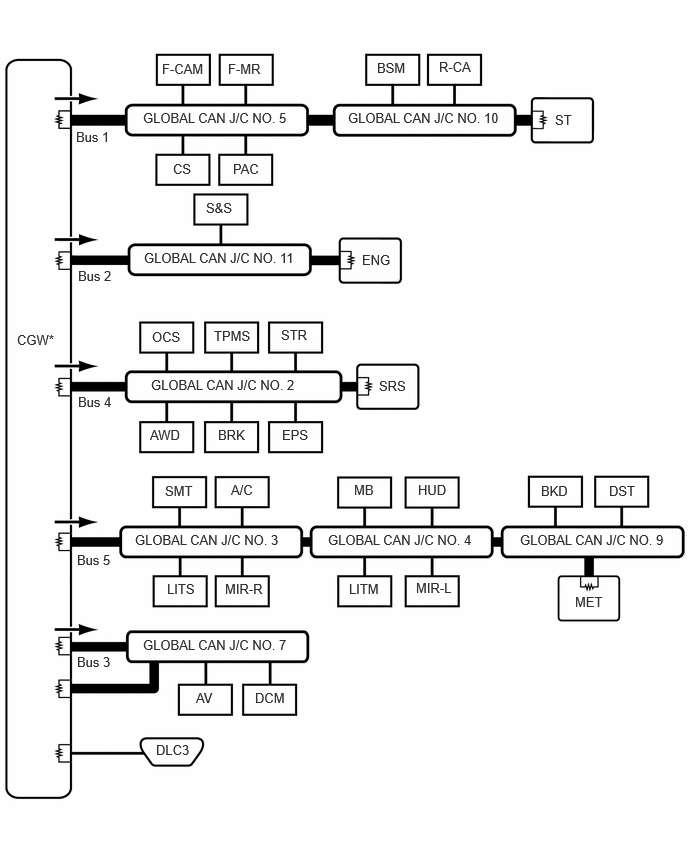

CGW |
Central Gateway ECU (Network Gateway ECU) |
- |
Installed on all vehicles |
| - |
DLC3 |
DLC3 |
- |
Installed on all vehicles |
| Bus 1 |
F-CAM |
Forward Recognition Camera |
Front Camera Module |
Installed on all vehicles |
| F-MR |
Millimeter Wave Radar Sensor Assembly |
Front Radar |
Installed on all vehicles |
| BSM |
Blind Spot Monitor Sensor LH |
Blind Spot Monitor Master |
w/ Blind Spot Monitor System |
| R-CA |
Rear Television Camera Assembly |
Parking Assist Monitor System / Rear Camera |
w/ Parking Assist Monitor System |
| CS |
Clearance Warning ECU Assembly |
Clearance Warning (Intuitive Parking Assist) |
w/ Intuitive Parking Assist System |
| PAC |
Parking Assist ECU |
Panoramic View Monitor / Circumference Monitoring Camera Control Module |
w/ Panoramic View Monitor System |
| GLOBAL CAN J/C NO. 5 |
No. 5 Global CAN Junction Connector |
- |
Installed on all vehicles |
| GLOBAL CAN J/C NO. 10 |
No. 10 Global CAN Junction Connector |
- |
Installed on all vehicles |
| ST |
No. 1 CAN Junction Terminal |
- |
Installed on all vehicles |
| Bus 2 |
ENG |
ECM |
ECM (Engine) |
Installed on all vehicles |
| S&S |
Engine Stop and Start ECU |
Stop and Go/Start |
w/ Stop and Start System |
| GLOBAL CAN J/C NO. 11 |
No. 11 Global CAN Junction Connector |
- |
Installed on all vehicles |
| Bus 3 |
AV |
Radio and display receiver assembly |
Display and Navigation (AVN) |
Installed on all vehicles |
| DCM |
DCM (Telematics Transceiver) |
DCM |
w/ Telematics Transceiver |
| GLOBAL CAN J/C NO. 7 |
No. 7 Global CAN Junction Connector |
- |
Installed on all vehicles |
| Bus 4 |
TPMS |
Tire Pressure Warning ECU and Receiver |
Tire Pressure |
Installed on all vehicles |
| OCS |
Occupant Detection ECU |
Occupant Detection |
Installed on all vehicles |
| AWD |
4WD ECU Assembly |
Four Wheel Drive Control |
for AWD |
| BRK |
Brake Actuator Assembly |
Skid Control (ABS/VSC/TRAC) |
Installed on all vehicles |
| EPS |
Rack and Pinion Power Steering Gear Assembly |
Power Steering (EPS) |
Installed on all vehicles |
| STR |
Steering Sensor |
Spiral cable (Steering Angle Sensor) |
Installed on all vehicles |
| SRS |
Airbag Sensor Assembly |
Airbag |
Installed on all vehicles |
| GLOBAL CAN J/C NO. 2 |
No. 2 Global CAN Junction Connector |
- |
Installed on all vehicles |
| Bus 5 |
LITS |
Headlight ECU Sub-assembly RH |
HL AutoLeveling/AFS/AHS (Sub) |
w/ AFS |
| MIR-R |
Outer Mirror Control ECU Assembly RH |
Front Door RH/R-Mirror (FR-Door/R-Mirror) |
w/ Seat Position Memory System |
| DST |
Position Control ECU Assembly LH |
D-Seat |
w/ Seat Position Memory System |
| MIR-L |
Outer Mirror Control ECU Assembly LH |
Front Door LH/L-Mirror (FL-Door/L-Mirror) |
w/ Seat Position Memory System |
| A/C |
Air Conditioning Amplifier Assembly |
Air Conditioning Amplifier |
Installed on all vehicles |
| MB |
Main Body ECU (Multiplex Network Body ECU) |
Main Body |
Installed on all vehicles |
| HUD |
Meter Mirror Sub-assembly |
Head Up Display |
w/ Headup Display System |
| SMT |
Certification ECU (Smart Key ECU Assembly) |
Certification (Smart) |
Installed on all vehicles |
| LITM |
Headlight ECU Sub-assembly LH |
HL AutoLeveling/AFS/AHS |
w/ AFS |
| MET |
Combination Meter Assembly |
Combination Meter |
Installed on all vehicles |
| BKD |
Multiplex Network Door ECU |
Back Door |
w/ Power Back Door System |
| GLOBAL CAN J/C NO. 3 |
No. 3 Global CAN Junction Connector |
- |
Installed on all vehicles |
| GLOBAL CAN J/C NO. 4 |
No. 4 Global CAN Junction Connector |
- |
Installed on all vehicles |
| GLOBAL CAN J/C NO. 9 |
No. 9 Global CAN Junction Connector |
- |
Installed on all vehicles |
