Stop And Start System - Diagnostic Codes (3 Of 3) & Circuit Tests (1 Of 3)
>>
Stop And Start System
>>
Starter Signal Circuit [12/2019 - 10/2022]
>>
Wiring Diagram

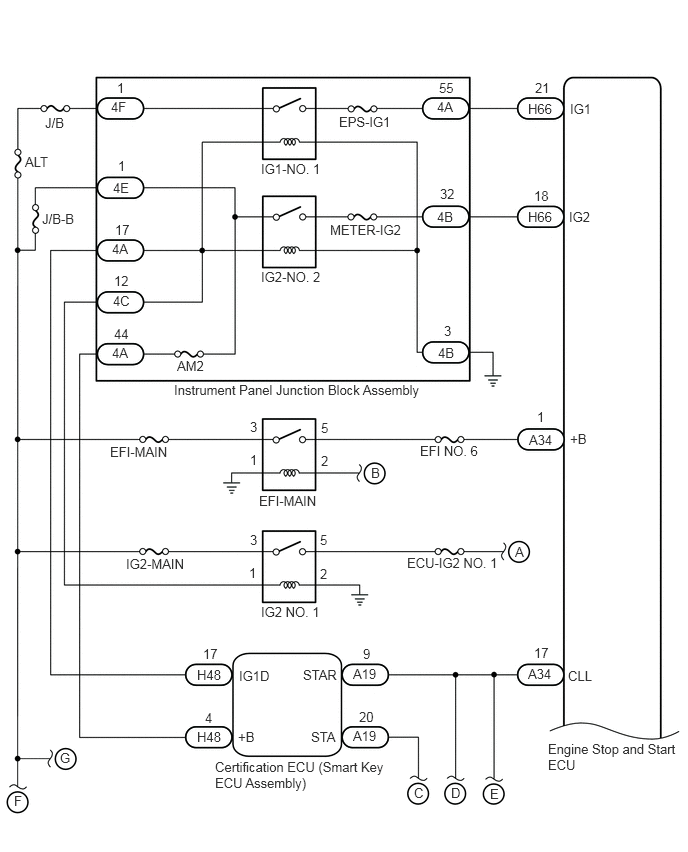

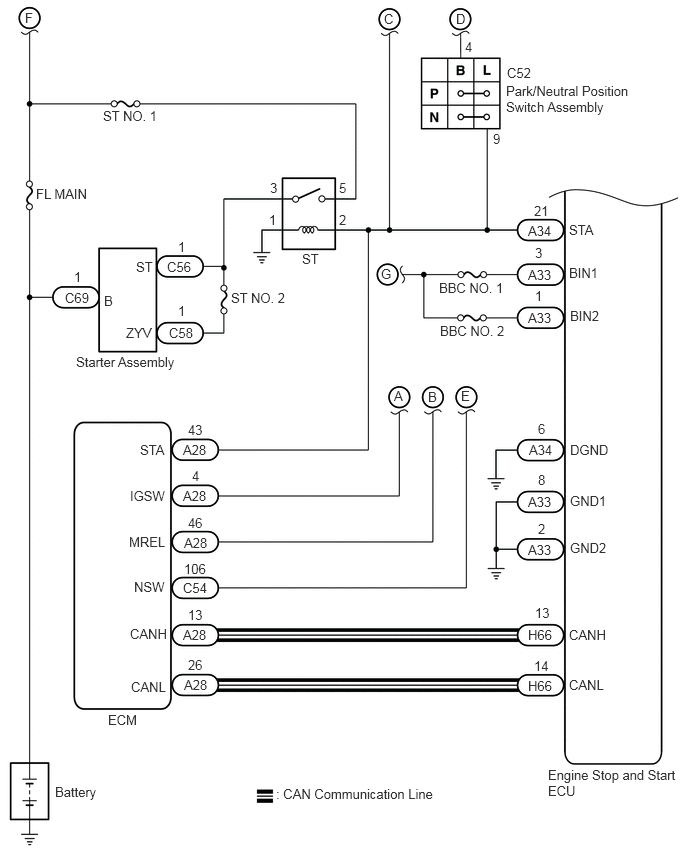

Starter Signal Circuit [12/2019 - 10/2022]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
