Stop And Start System
>>
Stop and Start Priority Control System [12/2019 - 10/2022]
>>

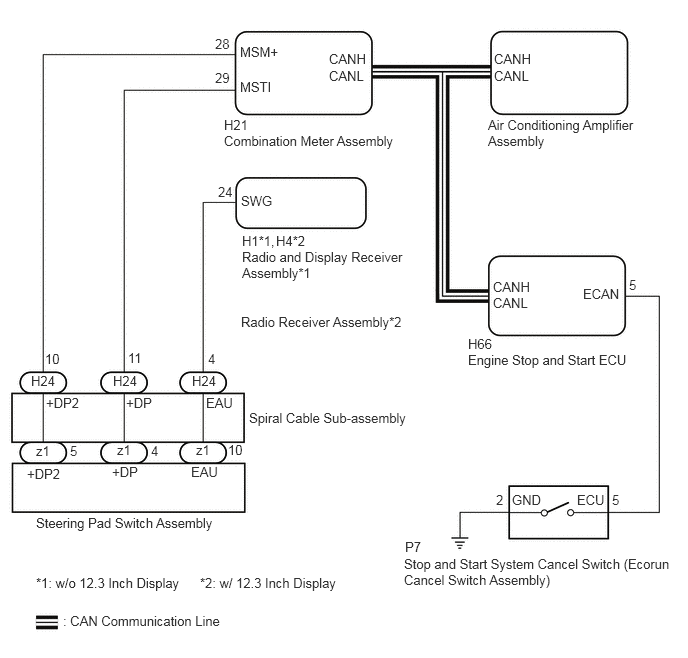

Wiring Diagram
Stop and Start Priority Control System [12/2019 - 10/2022]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
