ELECTRONICALLY CONTROLLED BRAKE SYSTEM (for Gasoline Model)
>>
DTC C1380-7E: Stop Lamp Relay Actuator Stuck On [12/2019 - ]
>>

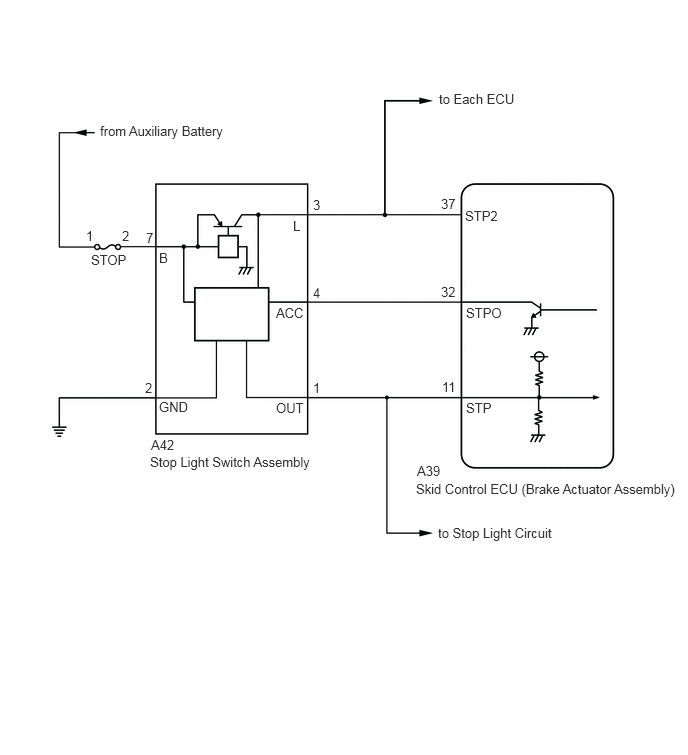

Wiring Diagram
DTC C1380-7E: Stop Lamp Relay Actuator Stuck On [12/2019 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
