Toyota
>>
2021
>>
Highlander LE, 4WD
>>
Repair and Diagnosis
>>
Brakes
>>
Mechanical - Hydraulic
>>
Electronically Controlled Brake System (Except HV) - Diagnostic Codes (3 Of 3), Symptom Tests & Circuit Tests
>>
ELECTRONICALLY CONTROLLED BRAKE SYSTEM (for Gasoline Model)
>>
DTC C143A-7E: ABS Solenoid Control Module Actuator Stuck On; DTC C143A-7F: ABS Solenoid Control Module Actuator Stuck Off [12/2019 - ]
>>
Wiring Diagram

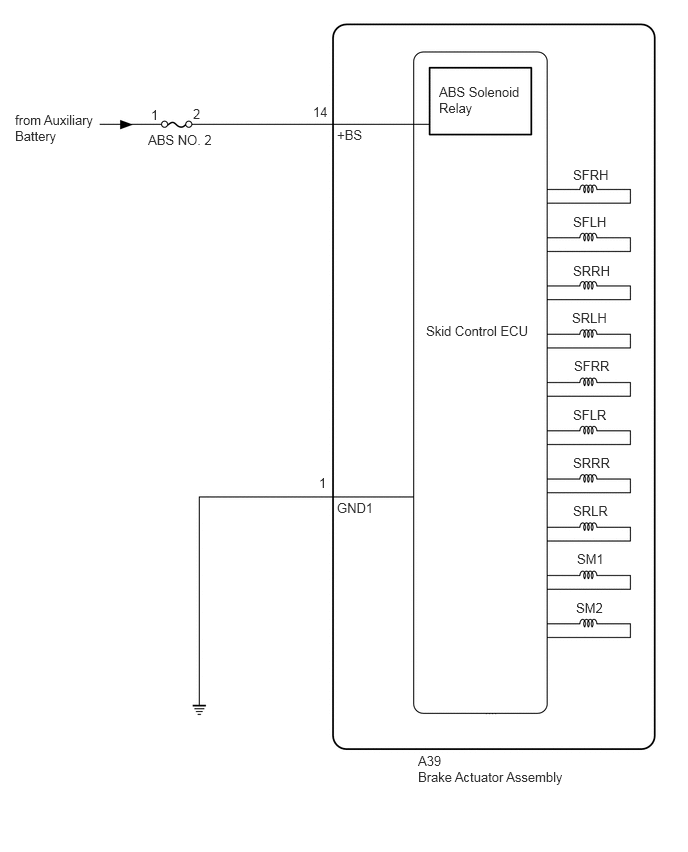

DTC C143A-7E: ABS Solenoid Control Module Actuator Stuck On; DTC C143A-7F: ABS Solenoid Control Module Actuator Stuck Off [12/2019 - ]: Wiring Diagram
