ELECTRONICALLY CONTROLLED BRAKE SYSTEM (for Gasoline Model)
>>
Brake Warning Light Remains ON [12/2019 - 10/2022]
>>
Wiring Diagram

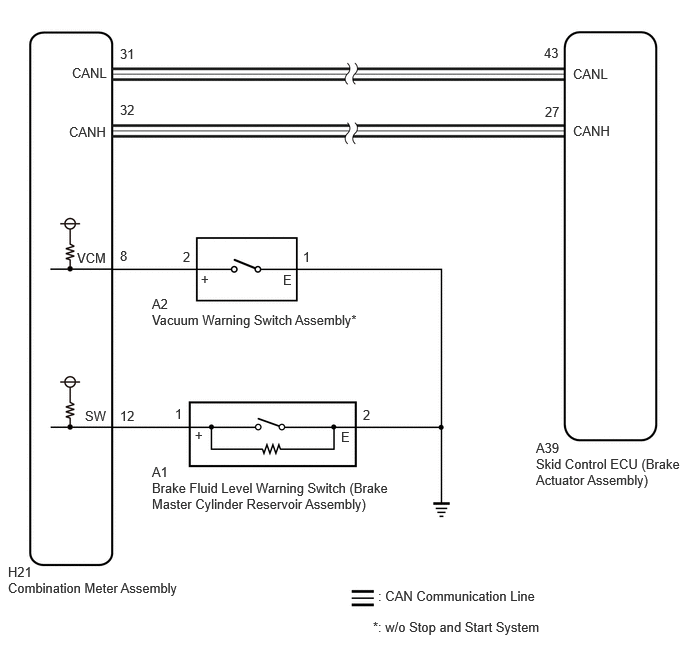

Brake Warning Light Remains ON [12/2019 - 10/2022]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
