Downhill Assist Control Indicator Light Circuit [10/2022 - ]: Wiring Diagram

except 12.3 Inch Display

GTY946598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

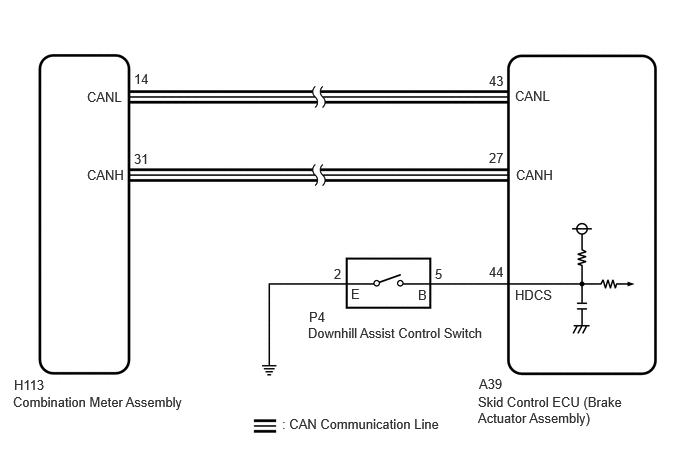

for 12.3 Inch Display

GTY1119222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
