Terminals Of Ecu [11/2023 - ]

NOTE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.
Refer to BEFORE DISCONNECTING BATTERY [11/2023 - ]
When disconnecting and reconnecting the battery.
HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Refer to AUTOMATIC LEARNING CHART [11/2023 - ]
Before measuring the resistance of the CAN bus, turn the ignition switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) battery terminal and leave the vehicle for 10 minutes or more before measuring the resistance.
This section describes the standard values for all CAN related components.

HINT:

The systems (ECUs and sensors) that use CAN communication vary depending on the vehicle and optional equipment. Check which systems (ECUs and sensors) are installed to the vehicle.
Refer to SYSTEM DIAGRAM [11/2023 - ]
Operating the ignition switch, any other switches or a door triggers related ECU and sensor communication on the CAN. This communication will cause the resistance value to change.
Even after DTCs are cleared, if a DTC is stored again after driving the vehicle for a while, the malfunction may be occurring due to vibration of the vehicle. In such a case, wiggling the ECUs or wire harness while performing the inspection below may help determine the cause of the malfunction.

NO. 2 GLOBAL CAN JUNCTION CONNECTOR

Check the No. 2 global CAN junction connector.

Connection diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Front view of wire harness connector
(to No. 2 Global CAN Junction Connector)

Check the connection diagram of the components which are connected to the No. 2 global CAN junction connector.

Terminal No. (Symbol)	Wiring Color	Connected to
H90-2 (CANH)	BE	Rack and pinion power steering gear assembly (for Bus 4)
H90-12 (CANL)	W	Rack and pinion power steering gear assembly (for Bus 4)
H90-3 (CANH)	B	Brake actuator assembly (for Bus 4)
H90-13 (CANL)	W	Brake actuator assembly (for Bus 4)
H90-5 (CANH)	G	Central gateway ECU (network gateway ECU) (for Bus 4)
H90-15 (CANL)	W	Central gateway ECU (network gateway ECU) (for Bus 4)
H90-7 (CANH)	V	Steering sensor (for Bus 4)
H90-17 (CANL)	W	Steering sensor (for Bus 4)
H90-8 (CANH)	R	Airbag sensor assembly (for Bus 4)
H90-18 (CANL)	W	Airbag sensor assembly (for Bus 4)

NO. 3 GLOBAL CAN JUNCTION CONNECTOR

Check the No. 3 global CAN junction connector.

Connection diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Front view of wire harness connector
(to No. 3 Global CAN Junction Connector)

Check the connection diagram of the components which are connected to the No. 3 global CAN junction connector.

Terminal No. (Symbol)	Wiring Color	Connected to
H91-1 (CANH)	L	Headlight ECU sub-assembly RH*1 (for Bus 5)
H91-11 (CANL)	W	Headlight ECU sub-assembly RH*1 (for Bus 5)
H91-2 (CANH)	LG	Central gateway ECU (network gateway ECU) (for Bus 5)
H91-12 (CANL)	W	Central gateway ECU (network gateway ECU) (for Bus 5)
H91-3 (CANH)	G	Certification ECU (smart key ECU assembly) (for Bus 5)
H91-13 (CANL)	W	Certification ECU (smart key ECU assembly) (for Bus 5)
H91-4 (CANH)	SB	Air conditioning amplifier assembly (for Bus 5)
H91-14 (CANL)	W	Air conditioning amplifier assembly (for Bus 5)
H91-5 (CANH)	P	Outer mirror control ECU assembly RH*2 (for Bus 5)
H91-15 (CANL)	W	Outer mirror control ECU assembly RH*2 (for Bus 5)
H91-6 (CANH)	B	No. 4 global CAN junction connector (for Bus 5)
H91-16 (CANL)	W	No. 4 global CAN junction connector (for Bus 5)

*1: w/ AFS
*2: w/ Seat Position Memory System

NO. 4 GLOBAL CAN JUNCTION CONNECTOR

Check the No. 4 global CAN junction connector.

Connection diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Front view of wire harness connector
(to No. 4 Global CAN Junction Connector)

Check the connection diagram of the components which are connected to the No. 4 global CAN junction connector.

Terminal No. (Symbol)	Wiring Color	Connected to
H92-3 (CANH)	B	No. 3 global CAN junction connector (for Bus 5)
H92-9 (CANL)	W	No. 3 global CAN junction connector (for Bus 5)
H92-4 (CANH)	R	No. 9 global CAN junction connector (for Bus 5)
H92-10 (CANL)	W	No. 9 global CAN junction connector (for Bus 5)
H92-5 (CANH)	P	Outer mirror control ECU assembly LH*1 (for Bus 5)
H92-11 (CANL)	W	Outer mirror control ECU assembly LH*1 (for Bus 5)
H92-6 (CANH)	L	Headlight ECU sub-assembly LH*2 (for Bus 5)
H92-12 (CANL)	W	Headlight ECU sub-assembly LH*2 (for Bus 5)

*1: w/ Seat Position Memory System
*2: w/ AFS

NO. 5 GLOBAL CAN JUNCTION CONNECTOR

Check the No. 5 global CAN junction connector.

Connection diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Front view of wire harness connector
(to No. 5 Global CAN Junction Connector)

Check the connection diagram of the components which are connected to the No. 5 global CAN junction connector.

Terminal No. (Symbol)	Wiring Color	Connected to
H93-1 (CANH)	P	Central gateway ECU (network gateway ECU) (for Bus 1)
H93-7 (CANL)	W	Central gateway ECU (network gateway ECU) (for Bus 1)
H93-2 (CANH)	R	Millimeter wave radar sensor assembly (for Bus 1)
H93-8 (CANL)	W	Millimeter wave radar sensor assembly (for Bus 1)
H93-3 (CANH)	L	Forward recognition camera (for Bus 1)
H93-9 (CANL)	W	Forward recognition camera (for Bus 1)
H93-4 (CANH)	B	No. 10 global CAN junction connector (for Bus 1)
H93-10 (CANL)	W	No. 10 global CAN junction connector (for Bus 1)
H93-5 (CANH)	L	Clearance warning ECU assembly*1 (for Bus 1)
H93-11 (CANL)	W	Clearance warning ECU assembly*1 (for Bus 1)
H93-6 (CANH)	GR	Parking assist ECU*2 (for Bus 1)
H93-12 (CANL)	W	Parking assist ECU*2 (for Bus 1)

*1: w/ Intuitive Parking Assist System
*2: w/ Panoramic View Monitor System

NO. 7 GLOBAL CAN JUNCTION CONNECTOR

Check the No. 7 global CAN junction connector.

Connection diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Front view of wire harness connector
(to No. 7 Global CAN Junction Connector)

Check the connection diagram of the components which are connected to the No. 7 global CAN junction connector.

Terminal No. (Symbol)	Wiring Color	Connected to
H99-1 (CANH)	LG	Meter mirror sub-assembly*1 (for Bus 3)
H99-12 (CANL)	W	Meter mirror sub-assembly*1 (for Bus 3)
H99-2 (CANH)	B	Central gateway ECU (network gateway ECU) (for Bus 3)
H99-13 (CANL)	W	Central gateway ECU (network gateway ECU) (for Bus 3)
H99-3 (CANH)	GR	Combination meter assembly (for Bus 3)
H99-14 (CANL)	W	Combination meter assembly (for Bus 3)
H99-4 (CANH)	B	Radio and display receiver assembly (for Bus 3)
H99-15 (CANL)	W	Radio and display receiver assembly (for Bus 3)
H99-5 (CANH)	R	DCM (telematics transceiver)*2 (for Bus 3)
H99-16 (CANL)	W	DCM (telematics transceiver)*2 (for Bus 3)
H99-6 (CANH)	B	Inner rear view mirror assembly*3 (for Bus 3)
H99-17 (CANL)	W	Inner rear view mirror assembly*3 (for Bus 3)

*1: w/ Headup Display System
*2: w/ Telematics Transceiver
*3: w/ Digital Inner Mirror System

NO. 9 GLOBAL CAN JUNCTION CONNECTOR

Check the No. 9 global CAN junction connector.

Connection diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Front view of wire harness connector
(to No. 9 Global CAN Junction Connector)

Check the connection diagram of the components which are connected to the No. 9 global CAN junction connector.

Terminal No. (Symbol)	Wiring Color	Connected to
M104-1 (CANH)	LG	Multiplex network door ECU*1 (for Bus 5)
M104-8 (CANL)	W	Multiplex network door ECU*1 (for Bus 5)
M104-3 (CANH)	G	Position control ECU assembly LH*2 (for Bus 5)
M104-10 (CANL)	W	Position control ECU assembly LH*2 (for Bus 5)
M104-5 (CANH)	R	No. 4 global CAN junction connector (for Bus 5)
M104-12 (CANL)	W	No. 4 global CAN junction connector (for Bus 5)
M104-7 (CANH)	B	Main Body ECU (Multiplex Network Body ECU) (for Bus 5)
M104-14 (CANL)	W	Main Body ECU (Multiplex Network Body ECU) (for Bus 5)

*1: w/ Power Back Door System
*2: w/ Seat Position Memory System

NO. 10 GLOBAL CAN JUNCTION CONNECTOR

Check the No. 10 global CAN junction connector.

Connection diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Front view of wire harness connector
(to No. 10 Global CAN Junction Connector)

Check the connection diagram of the components which are connected to the No. 10 global CAN junction connector.

Terminal No. (Symbol)	Wiring Color	Connected to
M105-1 (CANH)	V	Blind spot monitor sensor LH (B)*1 (for Bus 1)
M105-8 (CANL)	W	Blind spot monitor sensor LH (B)*1 (for Bus 1)
M105-3 (CANH)	G	No. 1 CAN junction terminal (for Bus 1)
M105-10 (CANL)	W	No. 1 CAN junction terminal (for Bus 1)
M105-5 (CANH)	R	Rear television camera assembly*2 (for Bus 1)
M105-12 (CANL)	W	Rear television camera assembly*2 (for Bus 1)
M105-7 (CANH)	B	No. 5 global CAN junction connector (for Bus 1)
M105-14 (CANL)	W	No. 5 global CAN junction connector (for Bus 1)

*1: w/ Blind Spot Monitor System
*2: w/ Parking Assist Monitor System

NO. 11 GLOBAL CAN JUNCTION CONNECTOR

Check the No. 11 global CAN junction connector.

Connection diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Front view of wire harness connector
(to No. 11 Global CAN Junction Connector)

Check the connection diagram of the components which are connected to the No. 11 global CAN junction connector.

Terminal No. (Symbol)	Wiring Color	Connected to
H97-9 (CANH)	B	ECM (for Bus 2)
H97-20 (CANL)	W	ECM (for Bus 2)
H97-10 (CANH)	R	Engine stop and start ECU* (for Bus 2)
H97-21 (CANL)	W	Engine stop and start ECU* (for Bus 2)
H97-11 (CANH)	SB	Central gateway ECU (network gateway ECU) (for Bus 2)
H97-22 (CANL)	W	Central gateway ECU (network gateway ECU) (for Bus 2)

*: w/ Stop and Start System

NO. 12 GLOBAL CAN JUNCTION CONNECTOR

Check the No. 12 global CAN junction connector.

Connection diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Front view of wire harness connector
(to No. 12 Global CAN Junction Connector)

Check the connection diagram of the components which are connected to the No. 12 global CAN junction connector.

Terminal No. (Symbol)	Wiring Color	Connected to
A92-8 (CANH)	SB	ECM (for Chassis local bus)
A92-19 (CANL)	W	ECM (for Chassis local bus)
A92-9 (CANH)	LG	Brake actuator assembly (for Chassis local bus)
A92-20 (CANL)	W	Brake actuator assembly (for Chassis local bus)
A92-10 (CANH)	P	Engine stop and start ECU* (for Chassis local bus)
A92-21 (CANL)	W	Engine stop and start ECU* (for Chassis local bus)
A92-11 (CANH)	BE	Central gateway ECU (network gateway ECU) (for Chassis local bus)
A92-22 (CANL)	W

*: w/ Stop and Start System

NO. 13 GLOBAL CAN JUNCTION CONNECTOR

Check the No. 13 global CAN junction connector.

Connection diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Front view of wire harness connector
(to No. 13 Global CAN Junction Connector)

Check the connection diagram of the components which are connected to the No. 13 global CAN junction connector.

Terminal No. (Symbol)	Wiring Color	Connected to
M108-1 (CANH)	V	Central gateway ECU (network gateway ECU) (for Bus 6)
M108-12 (CANL)	W	Central gateway ECU (network gateway ECU) (for Bus 6)
M108-2 (CANH)	L	Central gateway ECU (network gateway ECU) (for Bus 6)
M108-13 (CANL)	W	Central gateway ECU (network gateway ECU) (for Bus 6)
M108-3 (CANH)	G	Tire pressure warning ECU and receiver (for Bus 6)
M108-14 (CANL)	W	Tire pressure warning ECU and receiver (for Bus 6)
M108-4 (CANH)	Y	4WD ECU assembly* (for Bus 6)
M108-15 (CANL)	W	4WD ECU assembly* (for Bus 6)

*: for AWD

NO. 1 CAN JUNCTION TERMINAL

Check the No. 1 CAN junction terminal.

Connection diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Front view of wire harness connector
(to No. 1 CAN Junction Terminal)

Check the connection diagram of the components which are connected to the No. 1 CAN junction terminal.

Terminal No. (Symbol)	Wiring Color	Connected to
M89-3 (CANH)	G	No. 10 global CAN junction connector (for Bus 1)
M89-2 (CANL)	W	No. 10 global CAN junction connector (for Bus 1)

DLC3

Disconnect the cable from the negative (-) battery terminal.

Measure the resistance according to the value(s) in the table below.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DLC3

Standard Resistance

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
H56-6 (CANH) - H56-14 (CANL)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) battery terminal	54 to 69 Ω
H56-6 (CANH) - H56-4 (CG)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H56-14 (CANL) - H56-4 (CG)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H56-6 (CANH) - H56-16 (BAT)	HIGH-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
H56-14 (CANL) - H56-16 (BAT)	LOW-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher

CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Component without harness connected
(Central Gateway ECU (Network Gateway ECU))

Disconnect the cable from the negative (-) battery terminal.
Disconnect the H143 central gateway ECU (network gateway ECU) connector.

Measure the resistance according to the value(s) in the table below.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Front view of wire harness connector
(to Central Gateway ECU (Network Gateway ECU))

Standard Resistance

DIAGNOSIS BUS BRANCH LINES (DLC3 - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
H143-16 (CA6H) - H143-17 (CA6L)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) battery terminal	1 MΩ or higher
H143-16 (CA6H) - H143-22 (GND)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H143-17 (CA6L) - H143-22 (GND)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H143-16 (CA6H) - H143-1 (BATT)	HIGH-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
H143-17 (CA6L) - H143-1 (BATT)	LOW-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher

BUS 1 MAIN LINES

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
H143-28 (CA1H) - H143-27 (CA1L)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) battery terminal	108 to 132 Ω
H143-28 (CA1H) - H143-22 (GND)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H143-27 (CA1L) - H143-22 (GND)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H143-28 (CA1H) - H143-1 (BATT)	HIGH-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
H143-27 (CA1L) - H143-1 (BATT)	LOW-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher

BUS 2 MAIN LINES

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
H143-26 (CA4H) - H143-25 (CA4L)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) battery terminal	108 to 132 Ω
H143-26 (CA4H) - H143-22 (GND)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H143-25 (CA4L) - H143-22 (GND)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H143-26 (CA4H) - H143-1 (BATT)	HIGH-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
H143-25 (CA4L) - H143-1 (BATT)	LOW-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher

BUS 3 MAIN LINES

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
H143-30 (CA3H) - H143-29 (CA3L)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) battery terminal	108 to 132 Ω
H143-30 (CA3H) - H143-22 (GND)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H143-29 (CA3L) - H143-22 (GND)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H143-30 (CA3H) - H143-1 (BATT)	HIGH-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
H143-29 (CA3L) - H143-1 (BATT)	LOW-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher

BUS 4 MAIN LINES

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
H143-24 (CA2H) - H143-23 (CA2L)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) battery terminal	108 to 132 Ω
H143-24 (CA2H) - H143-22 (GND)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H143-23 (CA2L) - H143-22 (GND)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H143-24 (CA2H) - H143-1 (BATT)	HIGH-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
H143-23 (CA2L) - H143-1 (BATT)	LOW-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher

BUS 5 MAIN LINES

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
H143-7 (CA5H) - H143-8 (CA5L)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) battery terminal	108 to 132 Ω
H143-7 (CA5H) - H143-22 (GND)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H143-8 (CA5L) - H143-22 (GND)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H143-7 (CA5H) - H143-1 (BATT)	HIGH-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
H143-8 (CA5L) - H143-1 (BATT)	LOW-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher

BUS 6 MAIN LINES

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
H143-31 (CA7H) - H143-14 (CAXH)	HIGH-level CAN bus line - HIGH-level CAN bus line	Cable disconnected from negative (-) battery terminal	Below 1 Ω
H143-32 (CA7L) - H143-15 (CAXL)	LOW-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) battery terminal	Below 1 Ω
H143-31 (CA7H) - H143-22 (GND)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H143-32 (CA7L) - H143-22 (GND)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H143-31 (CA7H) - H143-1 (BATT)	HIGH-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
H143-32 (CA7L) - H143-1 (BATT)	LOW-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher

BUS 7 MAIN LINES

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
H143-5 (CA8H) - H143-6 (CA8L)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) battery terminal	108 to 132 Ω
H143-5 (CA8H) - H143-22 (GND)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H143-6 (CA8L) - H143-22 (GND)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H143-5 (CA8H) - H143-1 (BATT)	HIGH-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
H143-6 (CA8L) - H143-1 (BATT)	LOW-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher

CHASSIS LOCAL BUS LINES

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
H143-10 (CAVH) - H143-11 (CAVL)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) battery terminal	108 to 132 Ω
H143-10 (CAVH) - H143-22 (GND)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H143-11 (CAVL) - H143-22 (GND)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H143-10 (CAVH) - H143-1 (BATT)	HIGH-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
H143-11 (CAVL) - H143-1 (BATT)	LOW-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher

STEERING SENSOR

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Component without harness connected
(Steering Sensor)

Disconnect the cable from the negative (-) battery terminal.
Disconnect the H57 steering sensor connector.

Measure the resistance according to the value(s) in the table below.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Front view of wire harness connector (to Steering Sensor)

Standard Resistance

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
H57-3 (CANH) - H57-8 (CANL)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) battery terminal	54 to 69 Ω
H57-3 (CANH) - H57-6 (ESS)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H57-8 (CANL) - H57-6 (ESS)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H57-3 (CANH) - H57-4 (BAT)	HIGH-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
H57-8 (CANL) - H57-4 (BAT)	LOW-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher

ECM

Refer to Terminals of ECU.

Refer to TERMINALS OF ECM [11/2023 - ]

Disconnect the cable from the negative (-) battery terminal.
Disconnect the A83 and C89 ECM connectors.

Measure the resistance according to the value(s) in the table below.

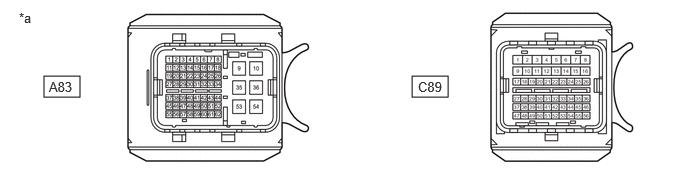

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Front view of wire harness connector
(to ECM)

Standard Resistance

BUS 2 MAIN LINES

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
A83-26 (CANH) - A83-25 (CANL)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) battery terminal	108 to 132 Ω
A83-26 (CANH) - A83-9 (E1)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
A83-25 (CANL) - A83-9 (E1)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
A83-26 (CANH) - C89-1 (BATT)	HIGH-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
A83-25 (CANL) - C89-1 (BATT)	LOW-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher

CHASSIS LOCAL BUS BRANCH LINES

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
A83-34 (CACH) - A83-33 (CACL)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) battery terminal	54 to 69 Ω
A83-34 (CACH) - A83-9 (E1)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
A83-33 (CACL) - A83-9 (E1)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
A83-34 (CACH) - C89-1 (BATT)	HIGH-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
A83-33 (CACL) - C89-1 (BATT)	LOW-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher

4WD ECU ASSEMBLY (for AWD)

Refer to Terminals of ECU.

Refer to TERMINALS OF ECU [12/2019 - ]

Disconnect the cable from the negative (-) battery terminal.
Disconnect the M42 4WD ECU assembly connector.

Measure the resistance according to the value(s) in the table below.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	DLC3	-	-
*a	Front view of wire harness connector (to 4WD ECU Assembly)	-	-

Standard Resistance

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
M42-17 (CANH) - M42-26 (CANL)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) battery terminal	54 to 69 Ω
M42-17 (CANH) - H56-4 (CG)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
M42-26 (CANL) - H56-4 (CG)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
M42-17 (CANH) - H56-16 (BAT)	HIGH-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
M42-26 (CANL) - H56-16 (BAT)	LOW-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher

COMBINATION METER ASSEMBLY (for 12.3 Inch Display)

Refer to Terminals of ECU.

Refer to TERMINALS OF ECU [11/2023 - ]

Disconnect the cable from the negative (-) battery terminal.
Disconnect the H113 and H112 combination meter assembly connectors.

Measure the resistance according to the value(s) in the table below.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

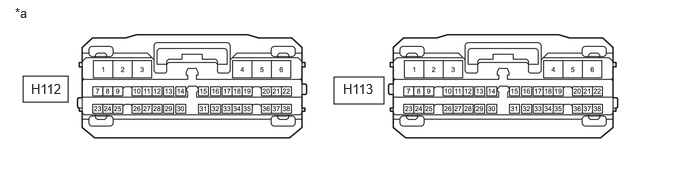

Front view of wire harness connector
(to Combination Meter Assembly)

Standard Resistance

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
H113-31 (CANH) - H113-14 (CANL)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) battery terminal	108 to 132 Ω
H113-31 (CANH) - H112-2 (ES)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H113-14 (CANL) - H112-2 (ES)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H113-31 (CANH) - H112-5 (B)	HIGH-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
H113-14 (CANL) - H112-5 (B)	LOW-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher

COMBINATION METER ASSEMBLY (except 12.3 Inch Display)

Refer to Terminals of ECU.

Refer to TERMINALS OF ECU [11/2023 - ]

Disconnect the cable from the negative (-) battery terminal.
Disconnect the H21 combination meter assembly connector.

Measure the resistance according to the value(s) in the table below.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Front view of wire harness connector (to Combination Meter Assembly)

Standard Resistance

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
H21-32 (CANH) - H21-31 (CANL)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) battery terminal	108 to 132 Ω
H21-32 (CANH) - H21-21 (ES)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H21-31 (CANL) - H21-21 (ES)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H21-32 (CANH) - H21-40 (B)	HIGH-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
H21-31 (CANL) - H21-40 (B)	HIGH-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher

BRAKE ACTUATOR ASSEMBLY

Refer to Terminals of ECU.

Refer to TERMINALS OF ECU [12/2019 - ]

Disconnect the cable from the negative (-) battery terminal.
Disconnect the A39 brake actuator assembly connector.

Measure the resistance according to the value(s) in the table below.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Front view of wire harness connector (to Brake Actuator Assembly)

Standard Resistance

BUS 4 BRANCH LINES

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
A39-27 (CANH) - A39-43 (CANL)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) battery terminal	54 to 69 Ω
A39-27 (CANH) - A39-1 (GND1)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
A39-43 (CANL) - A39-1 (GND1)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
A39-27 (CANH) - A39-14 (+BS)	HIGH-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
A39-43 (CANL) - A39-14 (+BS)	LOW-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher

CHASSIS LOCAL BUS MAIN LINES

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
A39-16 (CA2H) - A39-17 (CA2L)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) battery terminal	108 to 132 Ω
A39-16 (CA2H) - A39-1 (GND1)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
A39-17 (CA2L) - A39-1 (GND1)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
A39-16 (CA2H) - A39-14 (+BS)	HIGH-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
A39-17 (CA2L) - A39-14 (+BS)	LOW-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

Refer to Terminals of ECU.

Refer to TERMINALS OF ECU [11/2023 - ]

Disconnect the cable from the negative (-) battery terminal.
Disconnect the H135 main body ECU (multiplex network body ECU) connector.

Measure the resistance according to the value(s) in the table below.

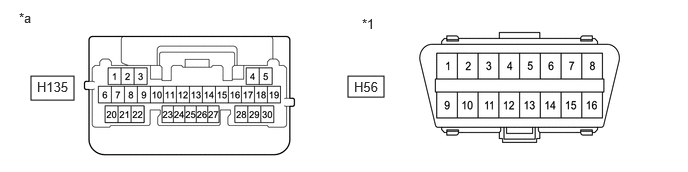

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	DLC3	-	-
*a	Front view of wire harness connector (to Main Body ECU (Multiplex Network Body ECU))	-	-

Standard Resistance

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
H135-2 (CANH) - H135-1 (CANL)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) battery terminal	108 to 132 Ω
H135-2 (CANH) - H56-4 (CG)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H135-1 (CANL) - H56-4 (CG)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H135-2 (CANH) - H56-16 (BAT)	HIGH-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
H135-1 (CANL) - H56-16 (BAT)	LOW-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher

CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

Refer to Terminals of ECU.

Refer to TERMINALS OF ECU [11/2023 - ]

Disconnect the cable from the negative (-) battery terminal.
Disconnect the H138 certification ECU (smart key ECU assembly) connector.

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
H138-1 (CANH) - H138-2 (CANL)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) battery terminal	54 to 69 Ω
H138-1 (CANH) - H138-29 (E)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H138-2 (CANL) - H138-29 (E)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H138-1 (CANH) - H138-6 (+B)	HIGH-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
H138-2 (CANL) - H138-6 (+B)	LOW-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Front view of wire harness connector (to Certification ECU (Smart Key ECU Assembly))

RACK AND PINION POWER STEERING GEAR ASSEMBLY

Refer to Terminals of ECU.

Refer to TERMINALS OF ECU [12/2019 - ]

Disconnect the cable from the negative (-) battery terminal.
Disconnect the C67 rack and pinion power steering gear assembly connector.

Measure the resistance according to the value(s) in the table below.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Front view of wire harness connector (to Rack and Pinion Power Steering Gear Assembly)

Standard Resistance

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
C67-10 (CANH) - C67-11 (CANL)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) battery terminal	108 to 132 Ω
C67-10 (CANH) - C67-7 (PGND)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
C67-11 (CANL) - C67-7 (PGND)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
C67-10 (CANH) - C67-8 (PIG)	HIGH-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
C67-11 (CANL) - C67-8 (PIG)	LOW-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher

CLEARANCE WARNING ECU ASSEMBLY (w/ Intuitive Parking Assist System)

Refer to Terminals of ECU.

Refer to TERMINALS OF ECU [11/2023 - ]

Disconnect the cable from the negative (-) battery terminal.
Disconnect the H46 clearance warning ECU assembly connector.

Measure the resistance according to the value(s) in the table below.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	DLC3	-	-

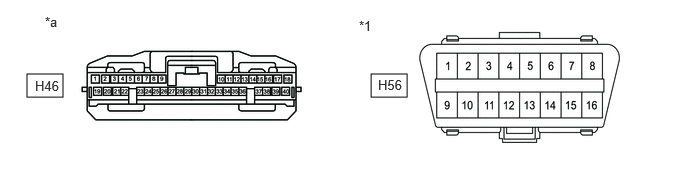

*a	Front view of wire harness connector (to Clearance Warning ECU Assembly)	-	-

Standard Resistance

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
H46-17 (R1) - H46-18 (R2)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) battery terminal	54 to 69 Ω
H46-17 (R1) - H46-31 (E)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H46-18 (R2) - H46-31 (E)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H46-17 (R1) - H56-16 (BAT)	HIGH-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
H46-18 (R2) - H56-16 (BAT)	LOW-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher

AIRBAG SENSOR ASSEMBLY

Refer to Terminals of ECU.

Refer to TERMINALS OF ECU [11/2023 - ]

Disconnect the cable from the negative (-) battery terminal.
Disconnect the H58 airbag sensor assembly connector.

Measure the resistance according to the value(s) in the table below.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	DLC3	-	-

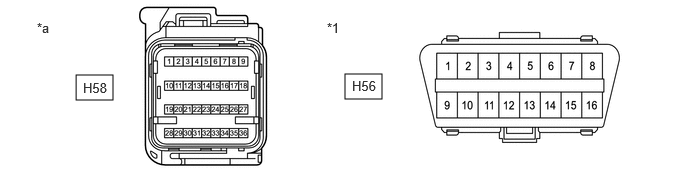

*a	Front view of wire harness connector (to Airbag Sensor Assembly)	-	-

Standard Resistance

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
H58-26 (CAFH) - H58-27 (CAFL)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) battery terminal	54 to 69 Ω
H58-26 (CAFH) - H58-33 (E1)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H58-27 (CAFL) - H58-33 (E1)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H58-26 (CAFH) - H56-16 (BAT)	HIGH-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
H58-27 (CAFL) - H56-16 (BAT)	LOW-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher

AIR CONDITIONING AMPLIFIER ASSEMBLY

Refer to Terminals of ECU.

Refer to TERMINALS OF ECU [11/2023 - ]

Disconnect the cable from the negative (-) battery terminal.
Disconnect the H62 air conditioning amplifier assembly connector.

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
H62-2 (CANH) - H62-1 (CANL)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) battery terminal	54 to 69 Ω
H62-2 (CANH) - H62-17 (GND)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H62-1 (CANL) - H62-17 (GND)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H62-2 (CANH) - H62-5 (B)	HIGH-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
H62-1 (CANL) - H62-5 (B)	LOW-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Front view of wire harness connector (to Air Conditioning Amplifier Assembly)

HEADLIGHT ECU SUB-ASSEMBLY LH (w/ AFS)

Refer to Terminals of ECU.

Refer to TERMINALS OF ECU [11/2023 - ]

Disconnect the cable from the negative (-) battery terminal.
Disconnect the A87 headlight ECU sub-assembly LH connector.

Measure the resistance according to the value(s) in the table below.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	DLC3	-	-

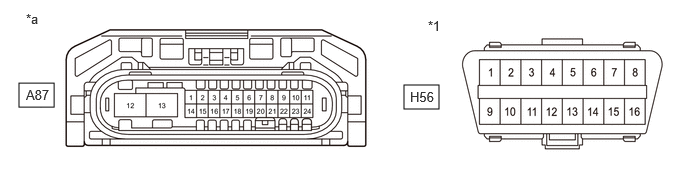

*a	Front view of wire harness connector (to Headlight ECU Sub-assembly LH)	-	-

Standard Resistance

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
A87-24 (CANH) - A87-23 (CANL)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) battery terminal	54 to 69 Ω
A87-24 (CANH) - A87-12 (GND)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
A87-23 (CANL) - A87-12 (GND)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
A87-24 (CANH) - H56-16 (BAT)	HIGH-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
A87-23 (CANL) - H56-16 (BAT)	LOW-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher

HEADLIGHT ECU SUB-ASSEMBLY RH (w/ AFS)

Refer to Terminals of ECU.

Refer to TERMINALS OF ECU [11/2023 - ]

Disconnect the cable from the negative (-) battery terminal.
Disconnect the A16 headlight ECU sub-assembly RH connector.

Measure the resistance according to the value(s) in the table below.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	DLC3	-	-

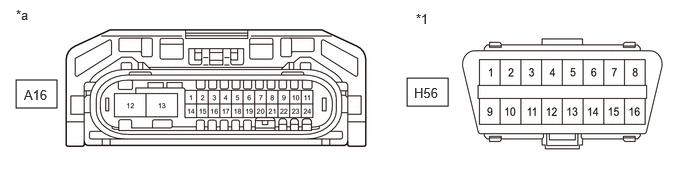

*a	Front view of wire harness connector (to Headlight ECU Sub-assembly RH)	-	-

Standard Resistance

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
A16-24 (CANH) - A16-23 (CANL)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) battery terminal	54 to 69 Ω
A16-24 (CANH) - A16-12 (GND)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
A16-23 (CANL) - A16-12 (GND)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
A16-24 (CANH) - H56-16 (BAT)	HIGH-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
A16-23 (CANL) - H56-16 (BAT)	LOW-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher

BLIND SPOT MONITOR SENSOR LH (B) (w/ Blind Spot Monitor System)

Refer to Terminals of ECU.

Refer to TERMINALS OF ECU [11/2023 - ]

Disconnect the cable from the negative (-) battery terminal.
Disconnect the M43 blind spot monitor sensor LH (B) connector.

Measure the resistance according to the value(s) in the table below.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	DLC3	-	-
*a	Front view of wire harness connector (to Blind Spot Monitor Sensor LH (B))	-	-

Standard Resistance

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
M43-2 (CA1P) - M43-7 (CA1N)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) battery terminal	54 to 69 Ω
M43-2 (CA1P) - H56-4 (CG)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
M43-7 (CA1N) - H56-4 (CG)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
M43-2 (CA1P) - H56-16 (BAT)	HIGH-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
M43-7 (CA1N) - H56-16 (BAT)	LOW-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher

FORWARD RECOGNITION CAMERA

Refer to Terminals of ECU.

Refer to TERMINALS OF ECU [12/2019 - ]

Disconnect the cable from the negative (-) battery terminal.
Disconnect the R5 forward recognition camera connector.

Measure the resistance according to the value(s) in the table below.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	DLC3	-	-
*a	Front view of wire harness connector (to Forward Recognition Camera)	-	-

Standard Resistance

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
R5-5 (CA1P) - R5-11 (CA1N)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) battery terminal	54 to 69 Ω
R5-5 (CA1P) - R5-10 (GND)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
R5-11 (CA1N) - R5-10 (GND)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
R5-5 (CA1P) - H56-16 (BAT)	HIGH-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
R5-11 (CA1N) - H56-16 (BAT)	LOW-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher

MILLIMETER WAVE RADAR SENSOR ASSEMBLY

Refer to Terminals of ECU.

Refer to TERMINALS OF ECU [12/2019 - ]

Disconnect the cable from the negative (-) battery terminal.
Disconnect the B6 millimeter wave radar sensor assembly connector.

Measure the resistance according to the value(s) in the table below.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	DLC3	-	-
*a	Front view of wire harness connector (to Millimeter Wave Radar Sensor Assembly)	-	-

Standard Resistance

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
B6-3 (CA2H) - B6-2 (CA2L)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) battery terminal	54 to 69 Ω
B6-3 (CA2H) - B6-1 (SGND)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
B6-2 (CA2L) - B6-1 (SGND)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
B6-3 (CA2H) - H56-16 (BAT)	HIGH-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
B6-2 (CA2L) - H56-16 (BAT)	LOW-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher

RADIO AND DISPLAY RECEIVER ASSEMBLY

Refer to Terminals of ECU.

Refer to TERMINALS OF ECU [10/2022 - ]

Disconnect the cable from the negative (-) battery terminal.
Disconnect the H108 radio and display receiver assembly connector.

Measure the resistance according to the value(s) in the table below.

*1	DLC3	-	-

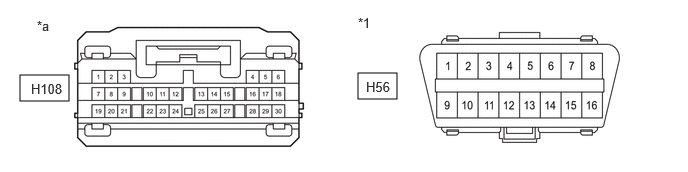

*a	Front view of wire harness connector (to Radio and Display Receiver Assembly)	-	-

Standard Resistance

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
H108-13 (CANH) - H108-14 (CANL)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) battery terminal	54 to 69 Ω
H108-13 (CANH) - H56-4 (CG)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H108-14 (CANL) - H56-4 (CG)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H108-13 (CANH) - H56-16 (BAT)	HIGH-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
H108-14 (CANL) - H56-16 (BAT)	LOW-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher

OPTION CONNECTOR (BUS BUFFER ECU) (w/ CAN Compatible Optional Devices)

Disconnect the cable from the negative (-) battery terminal.
Disconnect the H142 option connector (bus buffer ECU) connector.
HINT:

Disconnect any CAN compatible optional devices from the option connector.

Measure the resistance according to the value(s) in the table below.

*1	DLC3	-	-
*a	Front view of wire harness connector (to Option Connector (Bus Buffer ECU))	-	-

Standard Resistance

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
H142-2 (CAN+) - H142-1 (CAN-)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) battery terminal	108 to 132 Ω
H142-2 (CAN+) - H56-4 (CG)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H142-1 (CAN-) - H56-4 (CG)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H142-2 (CAN+) - H56-16 (BAT)	HIGH-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
H142-1 (CAN-) - H56-16 (BAT)	LOW-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher

DCM (TELEMATICS TRANSCEIVER) (w/ Telematics Transceiver)

Refer to Terminals of ECU.

Refer to TERMINALS OF ECU [10/2022 - ]

Disconnect the cable from the negative (-) battery terminal.
Disconnect the H11 DCM (telematics transceiver) connector.

Measure the resistance according to the value(s) in the table below.

*a	Front view of wire harness connector (to DCM (Telematics Transceiver))

Standard Resistance

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
H11-25 (CANP) - H11-26 (CANN)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) battery terminal	54 to 69 Ω
H11-25 (CANP) - H11-20 (E)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H11-26 (CANN) - H11-20 (E)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H11-25 (CANP) - H11-1 (+B)	HIGH-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
H11-26 (CANN) - H11-1 (+B)	LOW-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher

POSITION CONTROL ECU ASSEMBLY LH (w/ Seat Position Memory System)

Refer to Terminals of ECU.

Refer to TERMINALS OF ECU [11/2023 - ]

Disconnect the cable from the negative (-) battery terminal.
Disconnect the e23 and e25 position control ECU assembly LH connectors.

Measure the resistance according to the value(s) in the table below.

Front view of wire harness connector
(to Position Control ECU Assembly LH)

Standard Resistance

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
e25-13 (CANP) - e25-14 (CANN)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) battery terminal	54 to 69 Ω
e25-13 (CANP) - e23-2 (GND)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
e25-14 (CANN) - e23-2 (GND)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
e25-13 (CANP) - e23-3 (+B)	HIGH-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
e25-14 (CANN) - e23-3 (+B)	LOW-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher

MULTIPLEX NETWORK DOOR ECU (w/ Power Back Door System)

Refer to Terminals of ECU.

Refer to TERMINALS OF ECU [11/2023 - ]

Disconnect the cable from the negative (-) battery terminal.
Disconnect the W30 multiplex network door ECU connector.

Measure the resistance according to the value(s) in the table below.

*1	DLC3	-	-
*a	Front view of wire harness connector (to Multiplex Network Door ECU)	-	-

Standard Resistance

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
W30-10 (CANP) - W30-20 (CANN)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) battery terminal	54 to 69 Ω
W30-10 (CANP) - H56-4 (CG)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
W30-20 (CANN) - H56-4 (CG)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
W30-10 (CANP) - H56-16 (BAT)	HIGH-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
W30-20 (CANN) - H56-16 (BAT)	LOW-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher

REAR TELEVISION CAMERA ASSEMBLY (w/ Parking Assist Monitor System)

Refer to Terminals of ECU.

Refer to TERMINALS OF ECU [11/2023 - ]

Disconnect the cable from the negative (-) battery terminal.
Disconnect the W32 rear television camera assembly connector.

Measure the resistance according to the value(s) in the table below.

*1	DLC3	-	-
*a	Front view of wire harness connector (to Rear Television Camera Assembly)	-	-

Standard Resistance

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
W32-1 (CANH) - W32-2 (CANL)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) battery terminal	54 to 69 Ω
W32-1 (CANH) - H56-4 (CG)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
W32-2 (CANL) - H56-4 (CG)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
W32-1 (CANH) - H56-16 (BAT)	HIGH-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
W32-2 (CANL) - H56-16 (BAT)	LOW-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher

TIRE PRESSURE WARNING ECU AND RECEIVER

Refer to Terminals of ECU.

Refer to TERMINALS OF ECU [11/2023 - ]

Disconnect the cable from the negative (-) battery terminal.
Disconnect the M51 tire pressure warning ECU and receiver connector.

Measure the resistance according to the value(s) in the table below.

*1	DLC3	-	-
*a	Front view of wire harness connector (to Tire Pressure Warning ECU and Receiver)	-	-

Standard Resistance

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
M51-9 (CANH) - M51-10 (CANL)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) battery terminal	54 to 69 Ω
M51-9 (CANH) - M51-12 (GND)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
M51-10 (CANL) - M51-12 (GND)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
M51-9 (CANH) - H56-16 (BAT)	HIGH-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
M51-10 (CANL) - H56-16 (BAT)	LOW-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher

PARKING ASSIST ECU (w/ Panoramic View Monitor System)

Refer to Terminals of ECU.

Refer to TERMINALS OF ECU [10/2022 - ]

Disconnect the cable from the negative (-) battery terminal.
Disconnect the H111 parking assist ECU connector.

Measure the resistance according to the value(s) in the table below.

*a	Front view of wire harness connector (to Parking Assist ECU)

Standard Resistance

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
H111-12 (CANH) - H111-13 (CANL)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) battery terminal	54 to 69 Ω
H111-12 (CANH) - H111-4 (GND1)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H111-13 (CANL) - H111-4 (GND1)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H111-12 (CANH) - H111-1 (+B)	HIGH-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
H111-13 (CANL) - H111-1 (+B)	LOW-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher

OUTER MIRROR CONTROL ECU ASSEMBLY LH (w/ Seat Position Memory System)

Refer to Terminals of ECU.

Refer to TERMINALS OF ECU [12/2019 - ]

Disconnect the cable from the negative (-) battery terminal.
Disconnect the J23 outer mirror control ECU assembly LH connector.

Measure the resistance according to the value(s) in the table below.

*a	Front view of wire harness connector (to Outer Mirror Control ECU Assembly LH)

Standard Resistance

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
J23-9 (CANP) - J23-8 (CANN)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) battery terminal	54 to 69 Ω
J23-9 (CANP) - J23-7 (GND)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
J23-8 (CANN) - J23-7 (GND)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
J23-9 (CANP) - J23-6 (CPUB)	HIGH-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
J23-8 (CANN) - J23-6 (CPUB)	LOW-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher

OUTER MIRROR CONTROL ECU ASSEMBLY RH (w/ Seat Position Memory System)

Refer to Terminals of ECU.

Refer to TERMINALS OF ECU [12/2019 - ]

Disconnect the cable from the negative (-) battery terminal.
Disconnect the J7 outer mirror control ECU assembly RH connector.

Measure the resistance according to the value(s) in the table below.

*a	Front view of wire harness connector (to Outer Mirror Control ECU Assembly RH)

Standard Resistance

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
J7-9 (CANP) - J7-8 (CANN)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) battery terminal	54 to 69 Ω
J7-9 (CANP) - J7-7 (GND)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
J7-8 (CANN) - J7-7 (GND)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
J7-9 (CANP) - J7-6 (CPUB)	HIGH-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
J7-8 (CANN) - J7-6 (CPUB)	LOW-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher

INNER REAR VIEW MIRROR ASSEMBLY (w/ Digital Inner Mirror System)

Refer to Terminals of ECU.

Refer to TERMINALS OF ECU [11/2023 - ]

Disconnect the cable from the negative (-) battery terminal.
Disconnect the R1 inner rear view mirror assembly connector.

Measure the resistance according to the value(s) in the table below.

*a	Front view of wire harness connector (to Inner Rear View Mirror Assembly)

Standard Resistance

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
R1-9 (CANH) - R1-10 (CANL)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) battery terminal	54 to 69 Ω
R1-9 (CANH) - R1-2 (E)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
R1-10 (CANL) - R1-2 (E)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
R1-9 (CANH) - R1-6 (B)	HIGH-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
R1-10 (CANL) - R1-6 (B)	LOW-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher

ENGINE STOP AND START ECU (w/ Stop and Start System)

Refer to Terminals of ECU.

Refer to TERMINALS OF ECU [11/2023 - ]

Disconnect the cable from the negative (-) battery terminal.
Disconnect the H66 engine stop and start ECU connector.

Measure the resistance according to the value(s) in the table below.

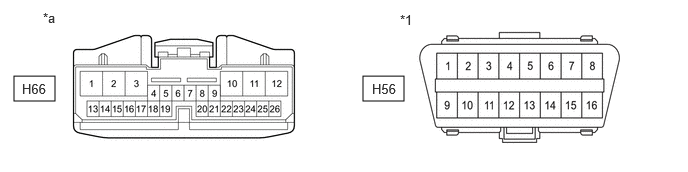

*1	DLC3	-	-
*a	Front view of wire harness connector (to Engine Stop and Start ECU)	-	-

Standard Resistance

BUS 2 BRANCH LINES

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
H66-13 (CANH) - H66-14 (CANL)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) battery terminal	54 to 69 Ω
H66-13 (CANH) - H56-4 (CG)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H66-14 (CANL) - H56-4 (CG)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H66-13 (CANH) - H56-16 (BAT)	HIGH-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
H66-14 (CANL) - H56-16 (BAT)	LOW-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher

CHASSIS LOCAL BUS BRANCH LINES

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
H66-15 (LC1H) - H66-16 (LC1L)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) battery terminal	54 to 69 Ω
H66-15 (LC1H) - H56-4 (CG)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H66-16 (LC1L) - H56-4 (CG)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H66-15 (LC1H) - H56-16 (BAT)	HIGH-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
H66-16 (LC1L) - H56-16 (BAT)	LOW-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher

METER MIRROR SUB-ASSEMBLY (w/ Headup Display System)

Refer to Terminals of ECU.

Refer to TERMINALS OF ECU [12/2019 - ]

Disconnect the cable from the negative (-) battery terminal.
Disconnect the H31 meter mirror sub-assembly connector.

Measure the resistance according to the value(s) in the table below.

*a	Front view of wire harness connector (to Meter Mirror Sub-assembly)

Standard Resistance

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
H31-12 (MPX1) - H31-13 (MPX2)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) battery terminal	54 to 69 Ω
H31-12 (MPX1) - H31-4 (ES)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H31-13 (MPX2) - H31-4 (ES)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) battery terminal	200 Ω or higher
H31-12 (MPX1) - H31-2 (B)	HIGH-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
H31-13 (MPX2) - H31-2 (B)	LOW-level CAN bus line - Battery positive (+)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher
