ELECTRONICALLY CONTROLLED BRAKE SYSTEM (for Gasoline Model)
>>
VSC OFF Switch Circuit [12/2019 - 10/2022]
>>
Wiring Diagram

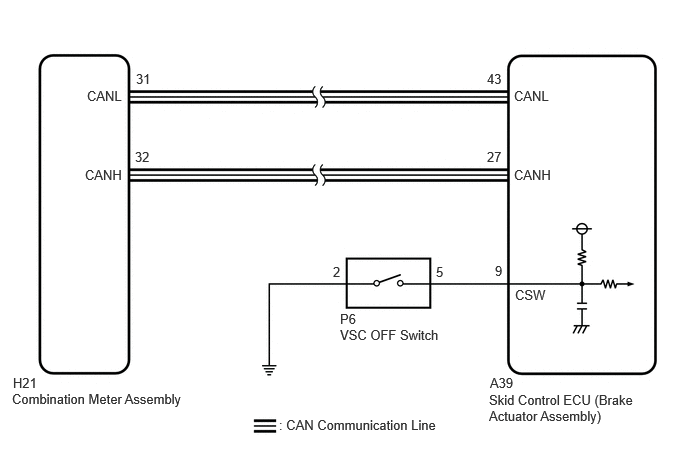

VSC OFF Switch Circuit [12/2019 - 10/2022]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
