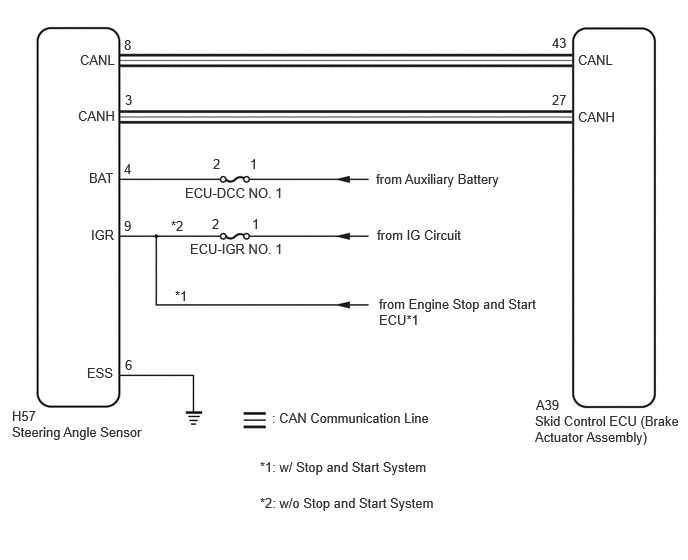

DTC C0526-2A: Steering Angle Sensor Module Signal Stuck In Range [11/2023 - ]: Wiring Diagram

GTY1178766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
