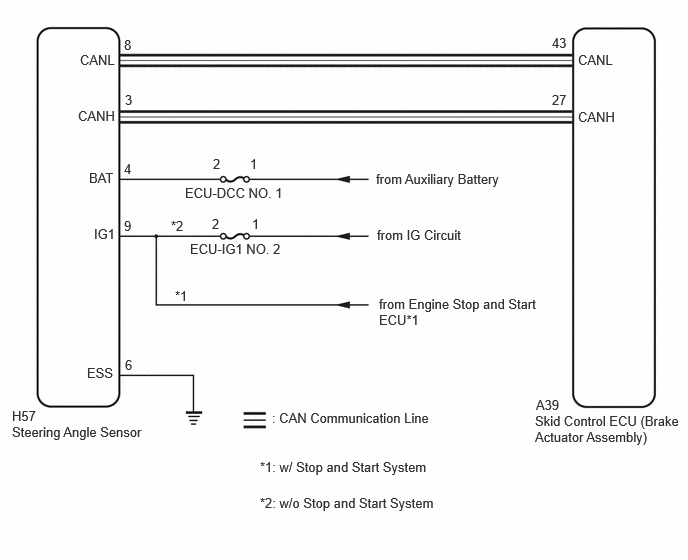

DTC C0526-2A: Steering Angle Sensor Module Signal Stuck In Range [12/2019 - 11/2023]: Wiring Diagram

GTY1114123

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
