DSD Information System
Home
>>
Toyota
>>
2021
>>
Highlander LE, 4WD
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Communication Devices
>>
CXPI Communication System - Diagnostic Codes
>>
CXPI Communication System
>>
DTC B2355-87: Power Distribution Box Missing Message; DTC B2357-87: Wiper Module Missing Message [11/2023 - ]
>>

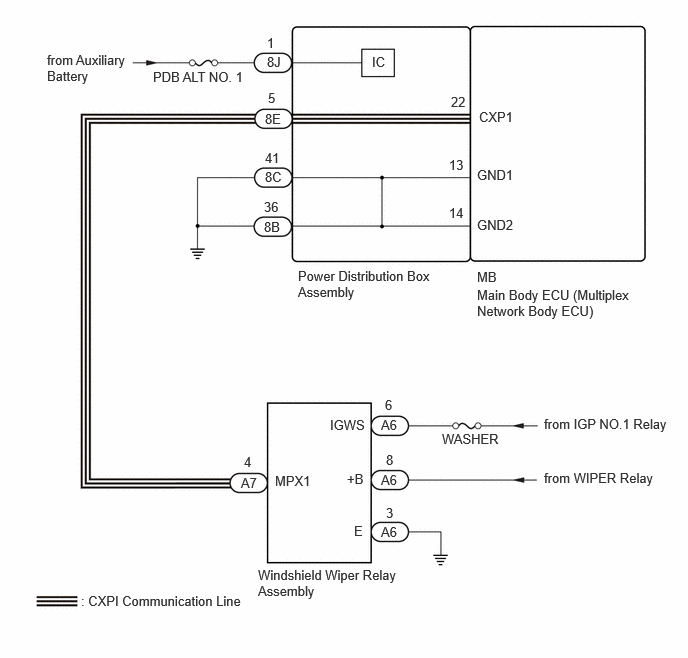

Wiring Diagram
DTC B2355-87: Power Distribution Box Missing Message; DTC B2357-87: Wiper Module Missing Message [11/2023 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
