Parts Location [11/2023 - ]: Illustration

GTY1179575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

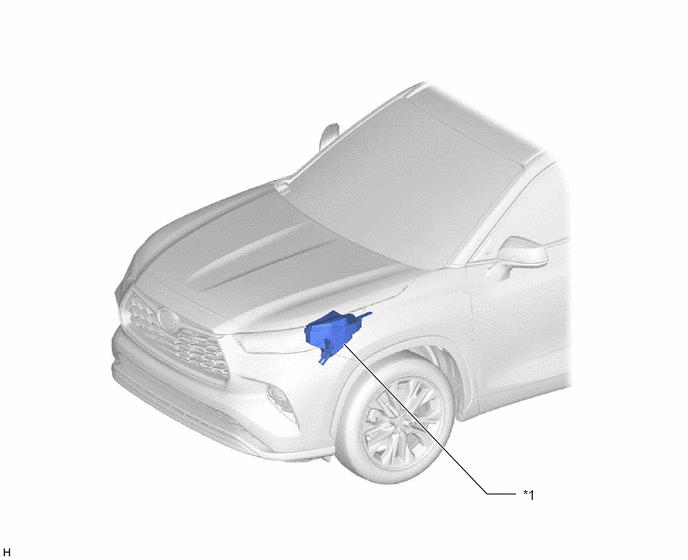

*1 NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY
- PDB ALT NO. 1 FUSE
- WASHER FUSE		 - -


GTY1179542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

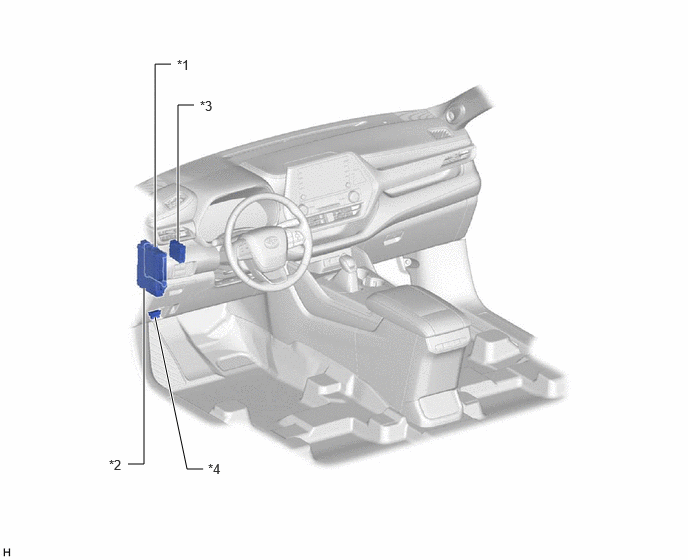

*1 MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) *2 POWER DISTRIBUTION BOX ASSEMBLY
*3 WINDSHIELD WIPER RELAY ASSEMBLY *4 DLC3
