On-Vehicle Inspection [12/2019 - 11/2023]: Procedure

1. Press each garage door opener ("HomeLink") switch and check that the ("HomeLink") indicator light turns on. If one or more of the garage door opener ("HomeLink") switches does not turn on the ("HomeLink") indicator light, check the condition of the fuse and wire harness. If the wire of the fuse is broken or the wire harness is malfunctioning repair or replace it. If not, replace the inner rear view mirror assembly (garage door opener).
   • For EC Inner Mirror:

     Refer to REMOVAL [12/2019 - 11/2023]

   • For Digital Inner Mirror:

     Refer to REMOVAL [12/2019 - 11/2023]

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A	For EC Inner Mirror	*B	For Digital Inner Mirror
   *a	("HomeLink") Indicator Light	*b	Garage Door Operation Indicators
   *c	("HomeLink") Icon	*d	("HomeLink") Logo
   *e	Garage Door Opener ("HomeLink") Switches	*f	Opening
   *g	Closing	-	-

HINT:

Use the "HomeLink" tester and a tester transmitter for this test. First clear the customer transmitter codes, and then register the tester transmitter code.

See step  1

1. Check if the tester transmitter code was successfully registered.

   HINT:

   • Any garage door opener ("HomeLink") switch can be pressed.
   • If the code cannot be registered, replace the inner rear view mirror assembly (garage door opener).

     For EC Inner Mirror:

     Refer to REMOVAL [12/2019 - 11/2023]

     For Digital Inner Mirror:

     Refer to REMOVAL [12/2019 - 11/2023]

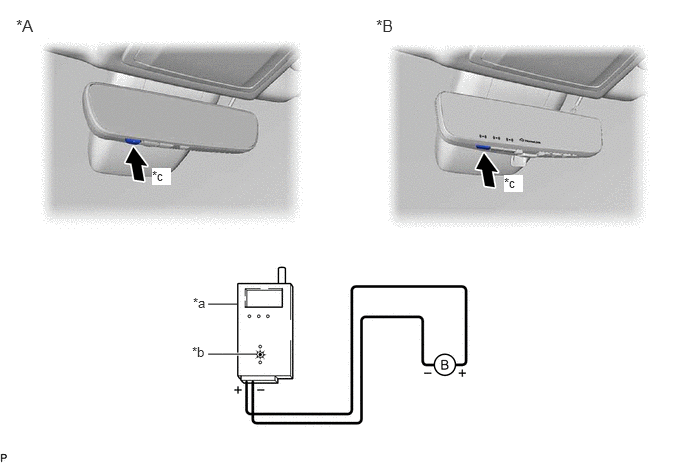

2. Apply battery voltage to the "HomeLink" tester as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A	For EC Inner Mirror	*B	For Digital Inner Mirror
   *a	"HomeLink" Tester	*b	Red LED
   *c	Press	-	-

3. Press a garage door opener ("HomeLink") switch. Check if the red LED of the "HomeLink" tester illuminates.

   HINT:

   If the red LED does not illuminate, replace the inner rear view mirror assembly (garage door opener).

   For EC Inner Mirror:

   Refer to REMOVAL [12/2019 - 11/2023]

   For Digital Inner Mirror:

   Refer to REMOVAL [12/2019 - 11/2023]

4. When the inspection is complete, register the customer transmitter code(s) again.

   HINT:

   • Registration of the customer transmitter code(s) may not be possible in the service facility if the customer's transmitters are not available or if any of the buttons are used for rolling code-type systems.
   • Refer to the Owner's Manual for additional information about registration (programming) of transmitter codes.
