Section 47 (Engine Control System (A25A-FXS) - Diagnostic Codes (P3190-U1293) & Circuit Tests (1 Of 2))
>>
SFI System
>>

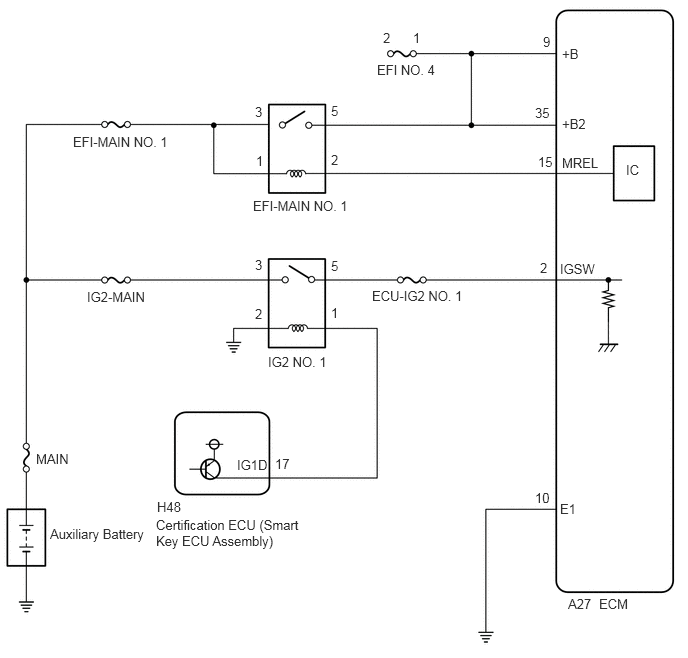

ECM Power Source Circuit [12/2019 - 11/2023]
>>
Wiring Diagram
ECM Power Source Circuit [12/2019 - 11/2023]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
