Parts Location [11/2023 - ]: Illustration

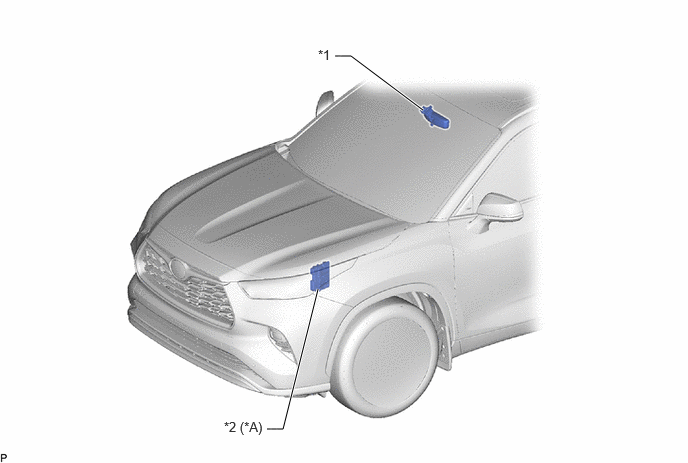

GTY1179327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A For Gasoline Model - -
*1 INNER REAR VIEW MIRROR ASSEMBLY
- GARAGE DOOR OPENER		 *2 ECM

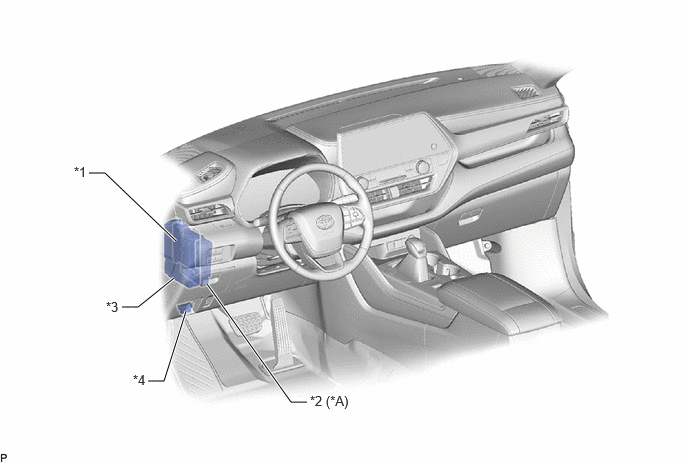

GTY1180372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A For HV Model - -
*1 MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) *2 HYBRID VEHICLE CONTROL ECU
*3 POWER DISTRIBUTION BOX ASSEMBLY
- ECU-DCC NO. 2 FUSE
- ECU-IGR NO. 3 FUSE		 *4 DLC3
