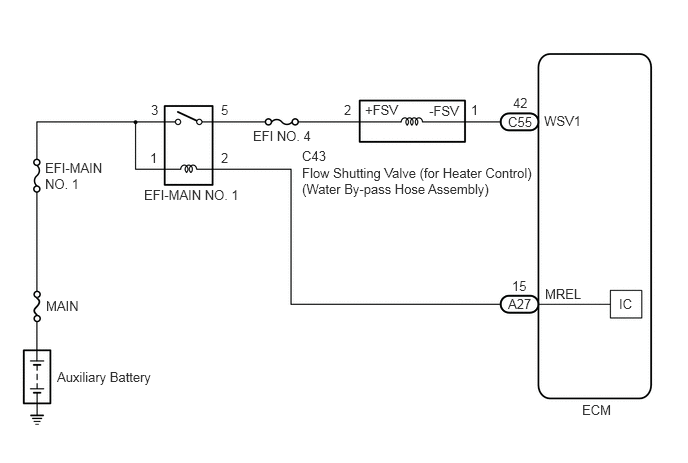

DTC P2681-11: Engine Coolant Bypass Valve Circuit Short to Ground; DTC P2681-15: Engine Coolant Bypass Valve Circuit Short to Battery or Open [11/2023 - ]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY848877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
