DTC B1206-87: P/W Master SW System Missing Message; DTC B1273-87: Sliding Roof System Missing Message; DTC B2321-87: D-Door P/W System Missing Message; DTC B2322-87: P-Door P/W System Missing Message; DTC B2323-87: RR-Door P/W System Missing Message; DTC B2324-87: RL-Door P/W System Missing Message; DTC B2329-87: Sunshade System Missing Message [11/2023 - ]: Wiring Diagram

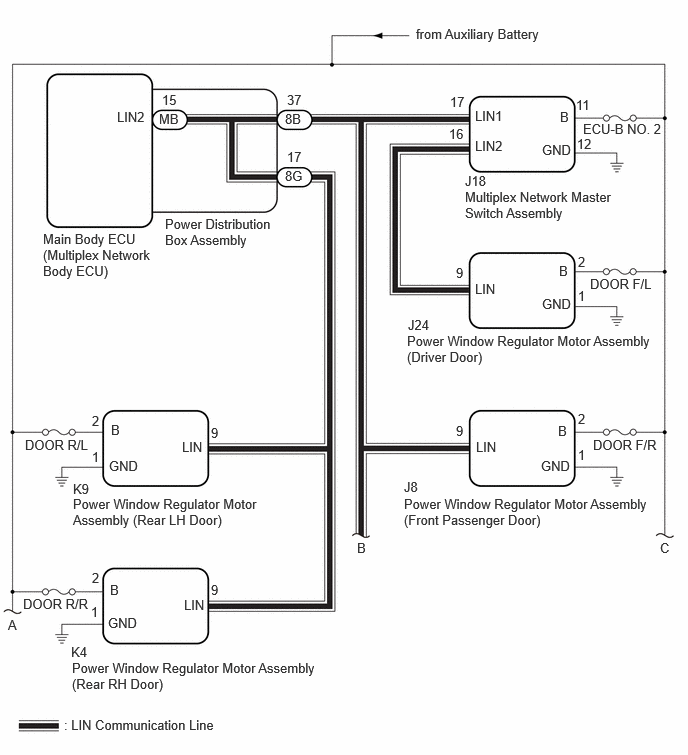

GTY1178265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

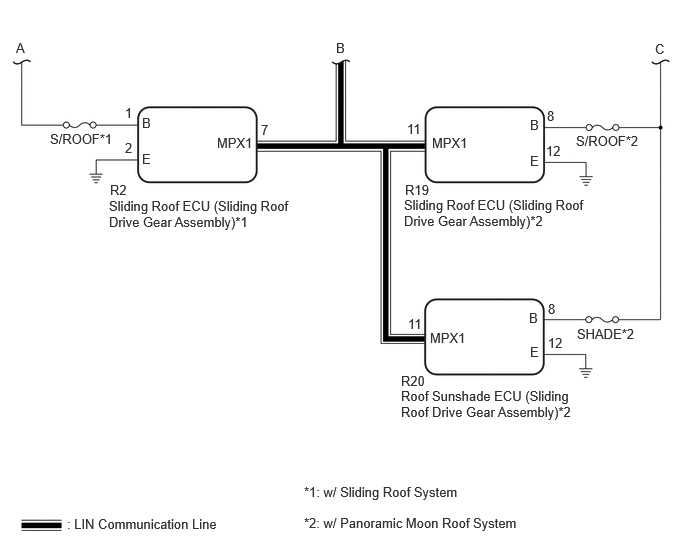

GTY1177913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
