Parts Location [12/2019 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.

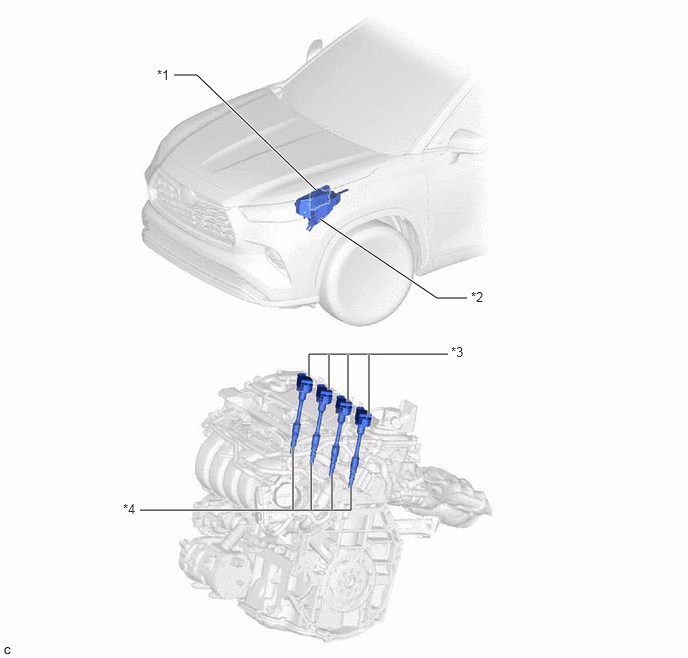

GTY910649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ECM *2 NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY
- INJ FUSE
*3 IGNITION COIL ASSEMBLY *4 SPARK PLUG
