Home >> Toyota >> 2021 >> Highlander LE, 4WD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Communication Devices >> Lin Communication System - Diagnostic Codes >> Lin Communication System >> DTC B2325-88: Door LIN Bus off [11/2023 - ] >> Wiring Diagram

DTC B2325-88: Door LIN Bus off [11/2023 - ]: Wiring Diagram

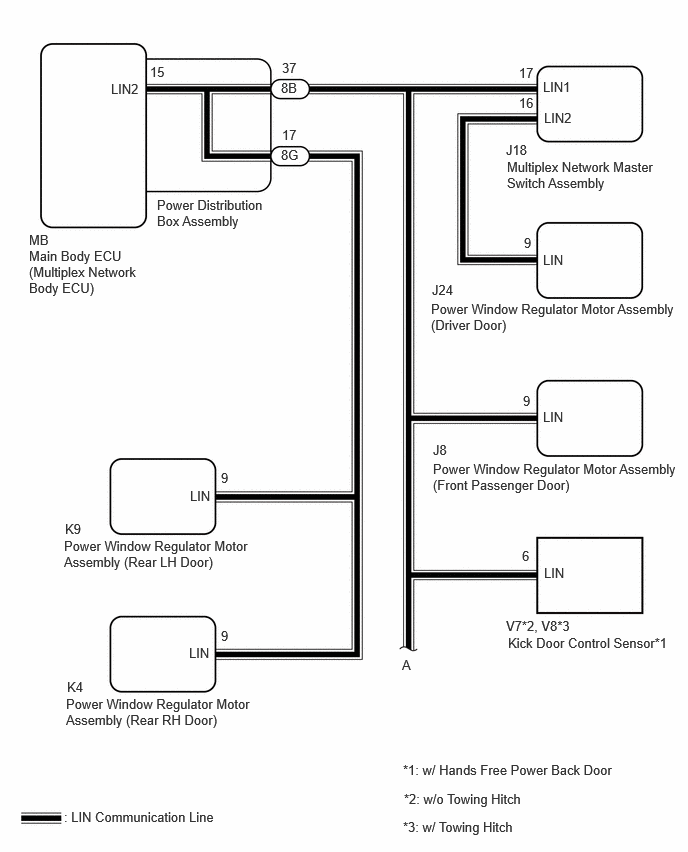

GTY1178543

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

GTY1177791

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
