DSD Information System
Home
>>
Toyota
>>
2021
>>
Highlander LE, 4WD
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Communication Devices
>>
Lin Communication System - Diagnostic Codes
>>
Lin Communication System
>>
DTC B2785: Communication Malfunction between ECUs Connected by LIN [12/2019 - 10/2021]
>>

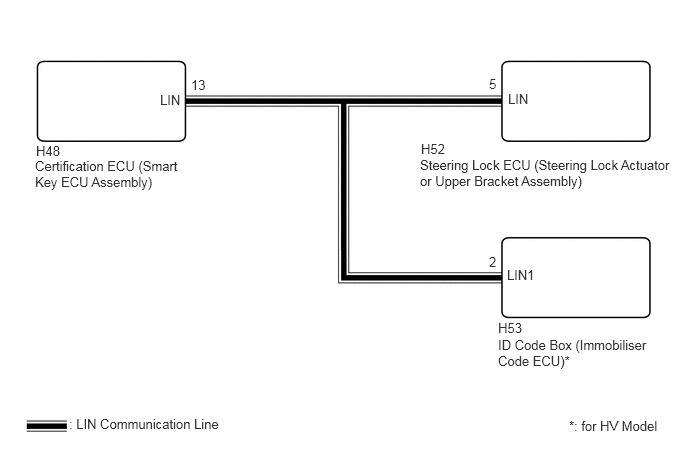

Wiring Diagram
DTC B2785: Communication Malfunction between ECUs Connected by LIN [12/2019 - 10/2021]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
