System Diagram [12/2019 - 10/2021]

  1. DOOR BUS LINES

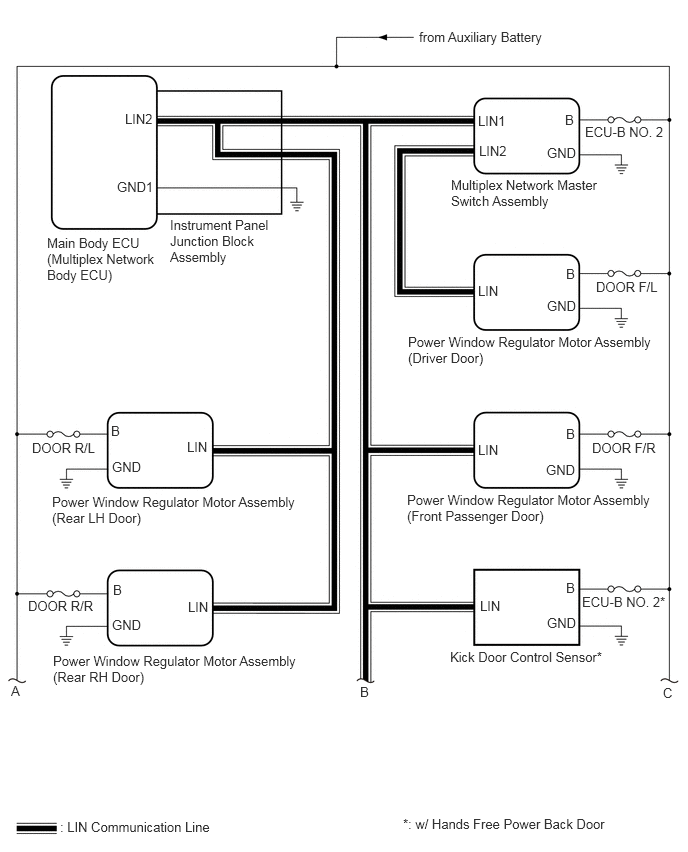

    GTY854649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

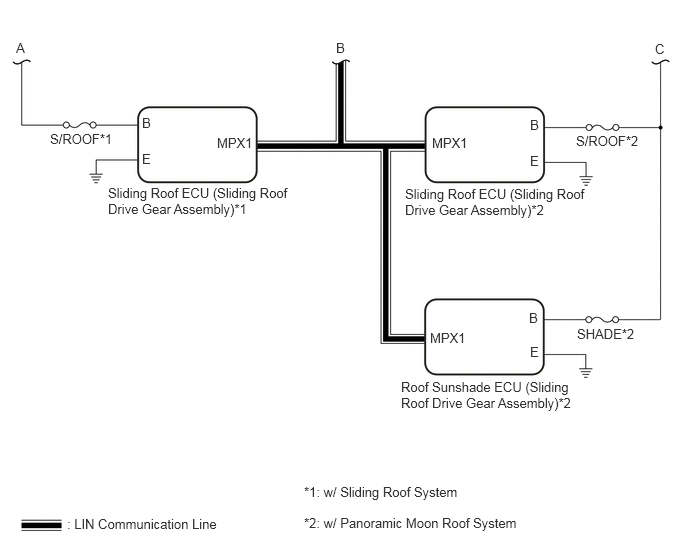

    GTY859522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. CERTIFICATION BUS LINES

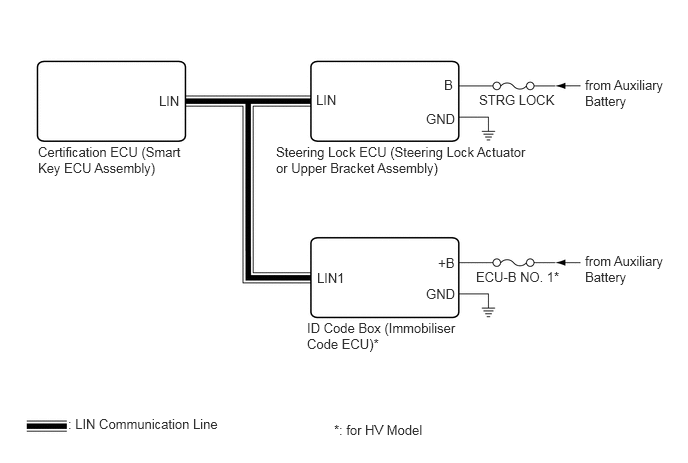

    GTY853584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
