System Diagram [11/2023 - ]

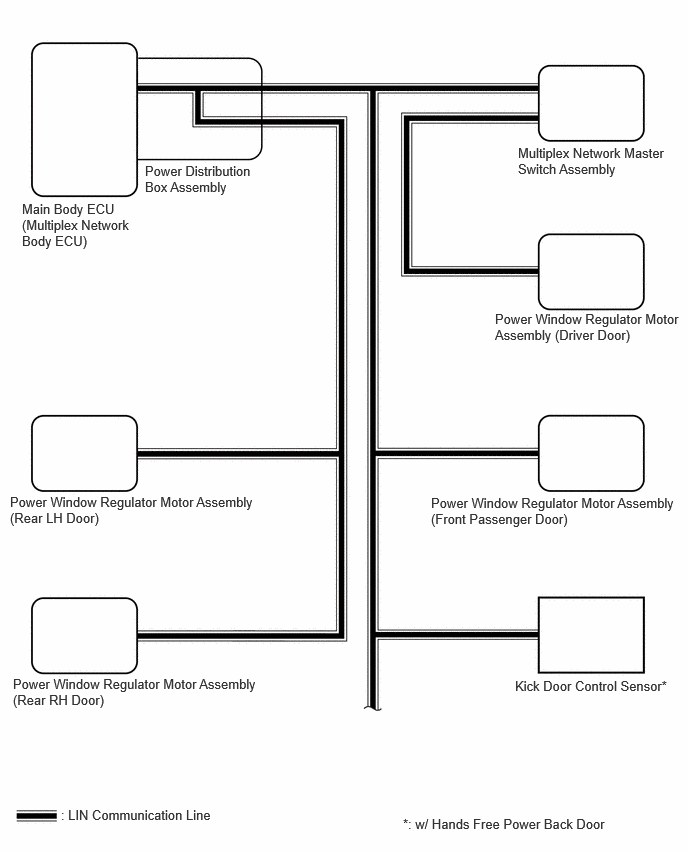

  1. DOOR BUS LINES
    GTY1178348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    GTY1178640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. CERTIFICATION BUS LINES
    GTY1131367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. SENSOR BUS LINES (w/ Auto Wiper System)
    GTY1057155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
