Section 124 (Engine Control System (A25A-FXS) - Diagnostic Codes (P1362-P16B0))
>>
SFI System
>>
DTC P15AD-87: Active Grille Air Shutter "A" Missing Message [11/2023 - ]
>>

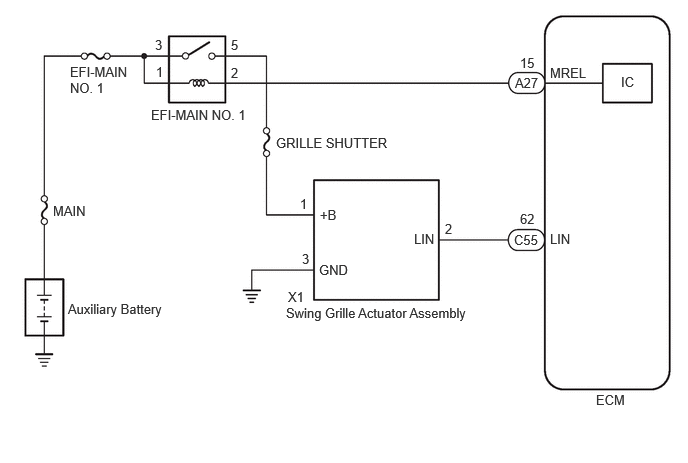

Wiring Diagram
DTC P15AD-87: Active Grille Air Shutter "A" Missing Message [11/2023 - ]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
