Components [11/2023 - ]

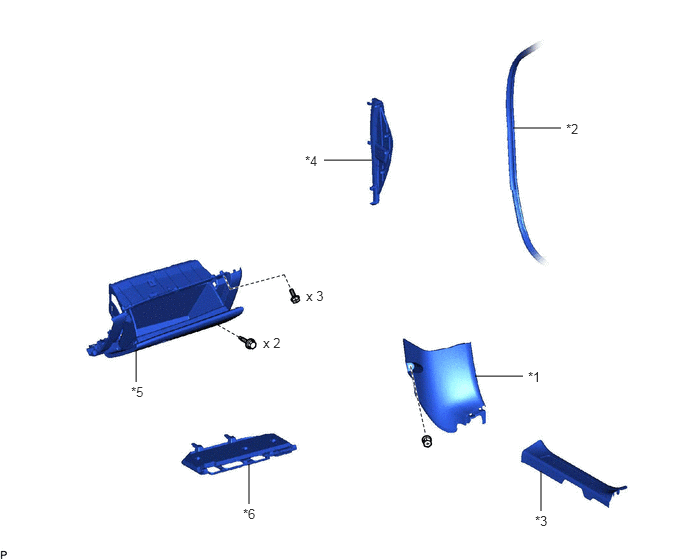

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | COWL SIDE TRIM SUB-ASSEMBLY RH | *2 | FRONT DOOR OPENING TRIM WEATHERSTRIP RH |
| *3 | FRONT DOOR SCUFF PLATE RH | *4 | INSTRUMENT PANEL FINISH END PANEL RH |
| *5 | LOWER INSTRUMENT PANEL SUB-ASSEMBLY | *6 | NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |

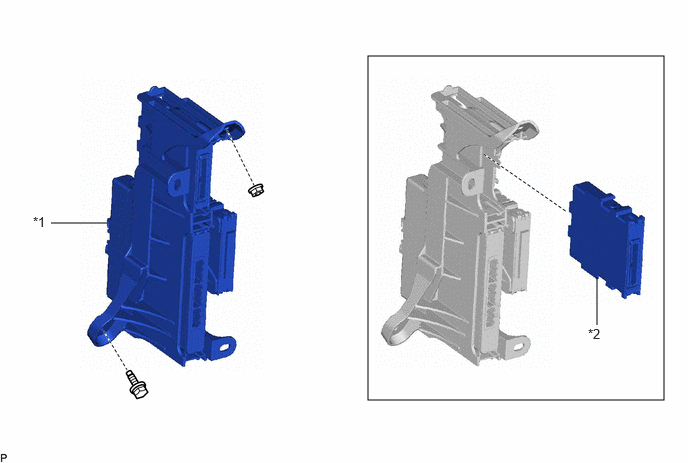

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | ECU INTEGRATION BOX RH | *2 | CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) |
