Confirmation Driving Pattern

WARNING: This page is about a different variant/trim than selected.

HINT:

After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.
Refer to DTC CHECK / CLEAR [11/2023 - ]
When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.
Refer to DTC CHECK / CLEAR [11/2023 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Connect the GTS to the DLC3.
Turn the ignition switch to ON.
Turn the GTS on.
Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
Put the engine in Inspection Mode (Maintenance Mode).
Refer to INSPECTION MODE PROCEDURE [12/2019 - ]

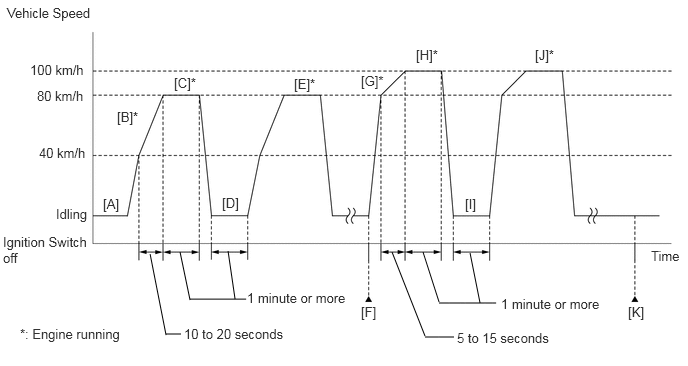

Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher [A].
With the engine running, drive the vehicle at 40 km/h (25 mph) or higher.
WARNING:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.

HINT:

If the engine stops, further depress the accelerator pedal to restart the engine.
With the engine running, gradually accelerate the vehicle from 40 km/h (25 mph) to 80 km/h (50 mph) taking approximately 10 to 20 seconds [B].
WARNING:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.

HINT:
- Refer to engine load and engine speed in Typical Enabling Conditions, and then accelerate the vehicle to 80 km/h (50 mph).
- If the engine stops, further depress the accelerator pedal to restart the engine.
With the engine running, drive the vehicle at 80 km/h (50 mph) or more for 1 minute or more [C].
WARNING:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.

HINT:
- Electrical load can be applied while the vehicle is driven.
- If the engine stops, further depress the accelerator pedal to restart the engine.
Idle the engine for 1 minute or more [D].
HINT:

Perform this step with the shift lever in D.
Repeat steps [B] and [D] above at least 3 times [E].
Enter the following menus: Powertrain / Engine / Trouble Codes [F].
Read the pending DTCs.
HINT:
- If a pending DTC is output, the system is malfunctioning.
- If a pending DTC is not output, perform the following procedure.
- [A] to [F]: Normal judgment procedure.
  The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.
- When clearing the permanent DTCs, do not disconnect the cable from the auxiliary battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.
With the engine running, drive the vehicle at 80 km/h (50 mph).
WARNING:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.

HINT:

If the engine stops, further depress the accelerator pedal to restart the engine.
With the engine running, gradually accelerate the vehicle from 80 km/h (50 mph) to 100 km/h (62 mph) taking approximately 5 to 15 seconds [G].
WARNING:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.

HINT:
- Refer to engine load and engine speed in Typical Enabling Conditions, and then accelerate the vehicle to 100 km/h (62 mph).
- If the engine stops, further depress the accelerator pedal to restart the engine.
With the engine running, drive the vehicle at 100 km/h (62 mph) or more for 1 minute or more [H].
WARNING:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.

HINT:
- Electrical load can be applied while the vehicle is driven.
- If the engine stops, further depress the accelerator pedal to restart the engine.
Idle the engine for 1 minute or more [I].
HINT:

Perform this step with the shift lever in D.
Repeat steps [G] and [I] above at least 2 times [J].
Enter the following menus: Powertrain / Engine / Trouble Codes [K].
Read the pending DTCs.
HINT:
- If a pending DTC is output, the system is malfunctioning.
- If a pending DTC is not output, perform the following procedure.
Enter the following menus: Powertrain / Engine / Utility / All Readiness.
Input the DTC: P11EA-00, P11EC-00, P11ED-00, P11EE-00, P11EF-00, P219A-00, P219C-00, P219D-00, P219E-00 or P219F-00.

Check the DTC judgment result.

GTS Display	Description
NORMAL	DTC judgment completed System normal
ABNORMAL	DTC judgment completed System abnormal
INCOMPLETE	DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions

HINT:

If the judgment result shows NORMAL, the system is normal.
If the judgment result shows ABNORMAL, the system has a malfunction.
If the judgment result shows INCOMPLETE, perform the confirmation driving pattern and check the judgment result again.
[A] to [K]: Normal judgment procedure.
The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.
When clearing the permanent DTCs, do not disconnect the cable from the auxiliary battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.
