Monitor Description

WARNING: This page is about a different variant/trim than selected.

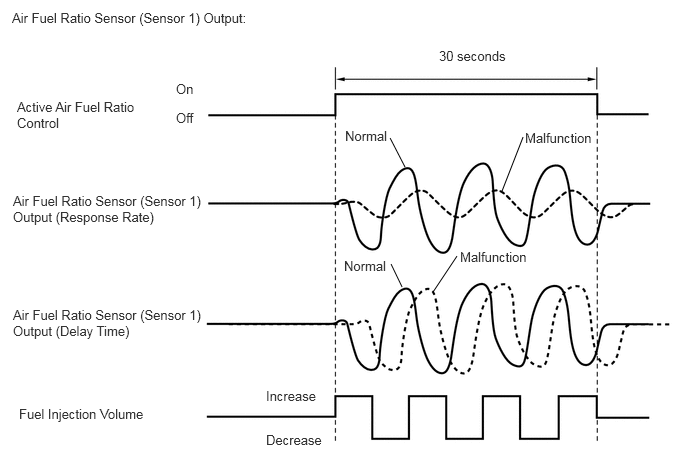

After the engine has been warmed up, the ECM carries out air fuel ratio feedback control and maintains the air fuel ratio at the theoretical ratio. In addition, after all the preconditions have been met, active air fuel ratio control is performed for approximately 30 seconds. During active air fuel ratio control, the ECM measures the response of the air fuel ratio sensor (sensor 1) by increasing or decreasing a specific injection quantity based on the theoretical air fuel ratio learned during normal air fuel control. The ECM determines whether there is an air fuel ratio sensor (sensor 1) malfunction at the mid-point of active air fuel ratio control.

If the response of the air fuel ratio sensor (sensor 1) has decreased, DTC P014C-00 and P014D-00 are output.

If the air fuel ratio sensor (sensor 1) output timing is delayed, DTC P015A-00 and P015B-00 are output.

GTY760425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
