DTC P0110-15: Intake Air Temperature Sensor 1 Bank 1 Circuit Short to Battery or Open [12/2019 - 10/2022]: Procedure
WARNING: This page is about a different variant/trim than selected.
- READ VALUE USING GTS (CHECK FOR OPEN IN WIRE HARNESS)

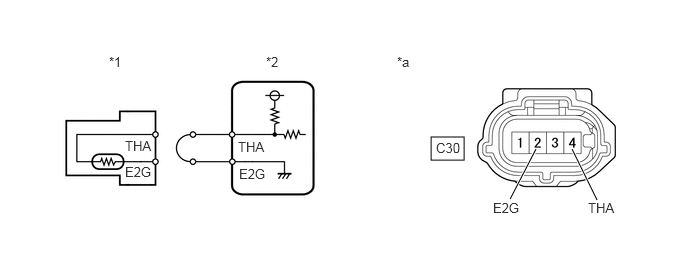

*1 Mass Air Flow Meter Sub-assembly *2 ECM *a Front view of wire harness connector
(to Mass Air Flow Meter Sub-assembly)- - - Disconnect the mass air flow meter sub-assembly connector.
- Connect terminals 4 (THA) and 2 (E2G) of the mass air flow meter sub-assembly connector on the wire harness side.
- According to the display on the GTS, read the Data List.
Powertrain > Engine > Data List
Tester Display Intake Air Temperature OK
GTS Display Specified Condition Intake Air Temperature Higher than 128°C (262°F) HINT:
Perform "Inspection After Repair" after replacing the mass air flow meter sub-assembly.
Refer to INITIALIZATION [12/2019 - 10/2021] , or refer to INITIALIZATION [10/2021 - ]
Result
Proceed to OK NG
Result:
OK
REPLACE MASS AIR FLOW METER SUB-ASSEMBLY
Refer to REMOVAL [12/2019 - ]
Result:
NG
See step 2
- CHECK HARNESS AND CONNECTOR (MASS AIR FLOW METER SUB-ASSEMBLY - ECM)
- Disconnect the mass air flow meter sub-assembly connector.
- Disconnect the ECM connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition C30-4 (THA) - C55-102 (THA) Always Below 1 Ω C30-2 (E2G) - C55-79 (E2G) Always Below 1 Ω C30-4 (THA) or C55-102 (THA) - Other terminals Always 10 kΩ or higher Result
Proceed to OK NG
Result:
OK
REPLACE ECM
Refer to REMOVAL [12/2019 - 10/2022]
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
