Mirror Heater does not Operate with Rear Defogger Switch [12/2019 - 11/2023]: Wiring Diagram

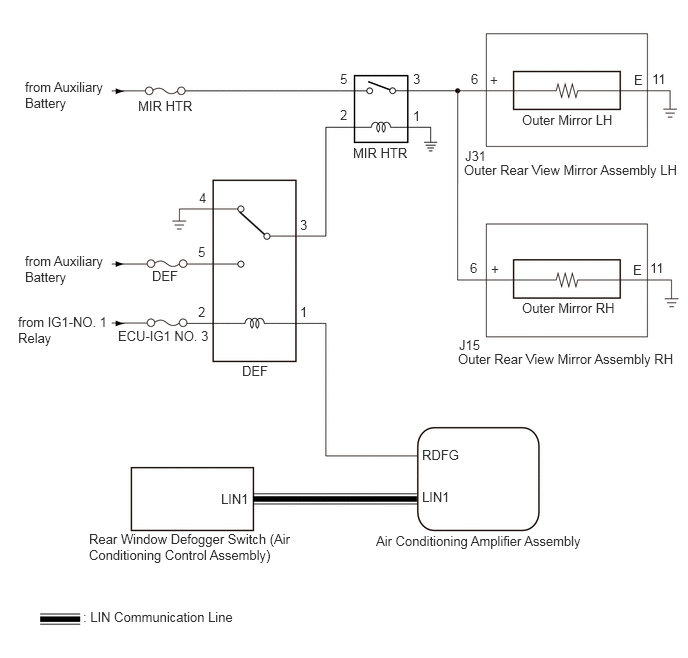

Fig 1: Mirror Heater Does Not Operate With Rear Defogger Switch [12/2019 - 11/2023]
GTY850780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
