Mirror Heater does not Operate with Rear Defogger Switch [11/2023 - ]: Wiring Diagram

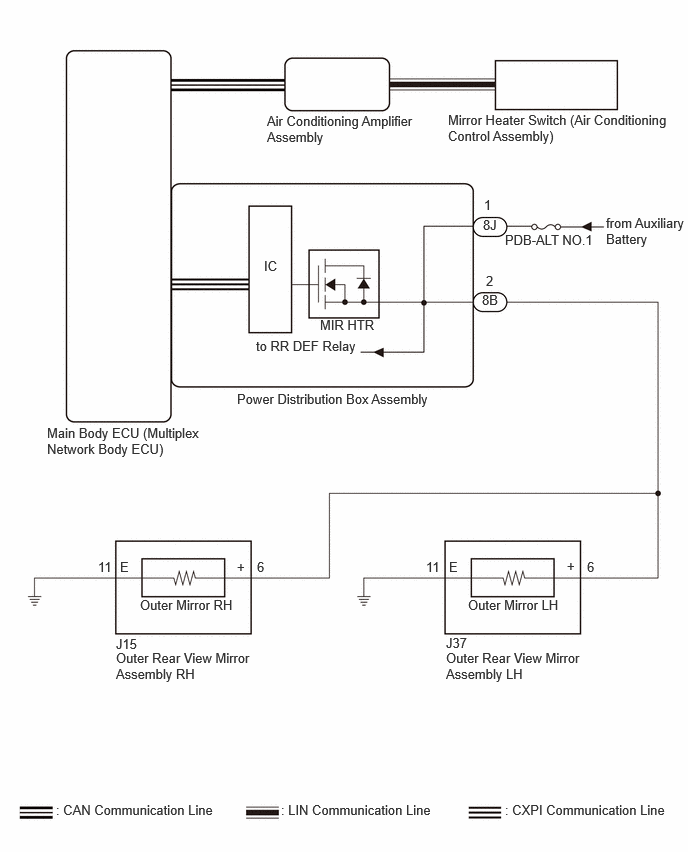

Fig 1: Mirror Heater Does Not Operate With Rear Defogger Switch [11/2023 - ]
GTY1178537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
