Removal [12/2019 - ]: Procedure

  1. REMOVE NO. 2 FORWARD RECOGNITION COVER

    Refer to PROCEDURE - Step 1 [12/2019 - 09/2020] , or refer to PROCEDURE - Step 1 [09/2020 - 11/2023] , or refer to PROCEDURE - Step 1 [11/2023 - ]

  2. REMOVE NO. 1 FORWARD RECOGNITION COVER

    Refer to PROCEDURE - Step 2 [12/2019 - 09/2020] , or refer to PROCEDURE - Step 2 [09/2020 - 11/2023] , or refer to PROCEDURE - Step 2 [11/2023 - ]

  3. REMOVE INNER REAR VIEW MIRROR ASSEMBLY

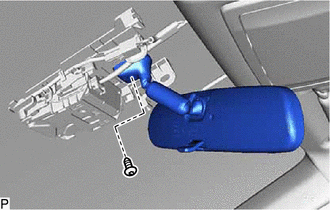

    1. Using a T20 "TORX" socket wrench, remove the screw.
      GTY940391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

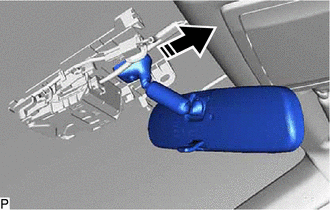

    2. Slide the inner rear view mirror assembly as shown in the illustration to remove it.
      GTY910810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
